(3P-STD-C2L-50LP-716P-LT) Les Paul '50s Style Pre-Wired Upgrade Kit | CTS 550K Long Shaft, Tall Switchcraft Toggle w/ Jack

Buhr Electronics

Regular price $82.84

Ask a Question

This kit has long shaft 3/4" pots and the Standard Frame / Tall Switchcraft Toggle Switch.  It is ideal for Gibson Les Paul Standards, Traditionals, Classics, and Customs.

Here is a great way to upgrade your Les Paul or Les Paul style guitar with high quality components in one easy drop-in harness.

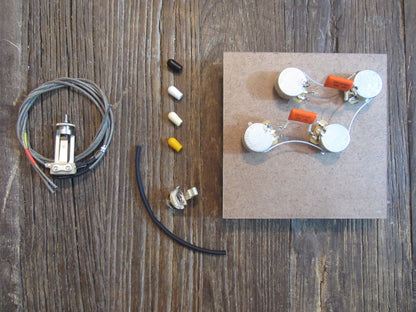

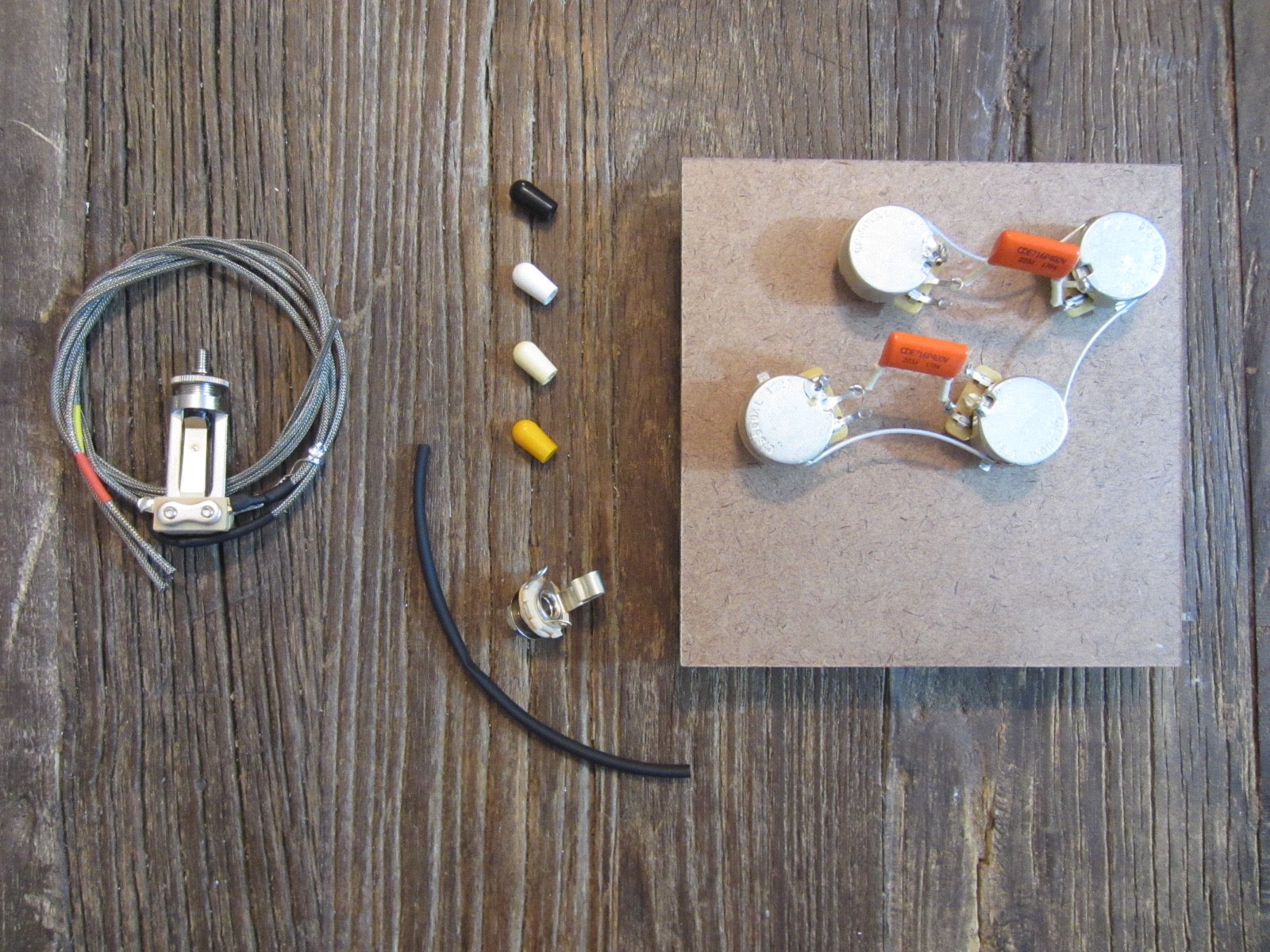

This kit includes:

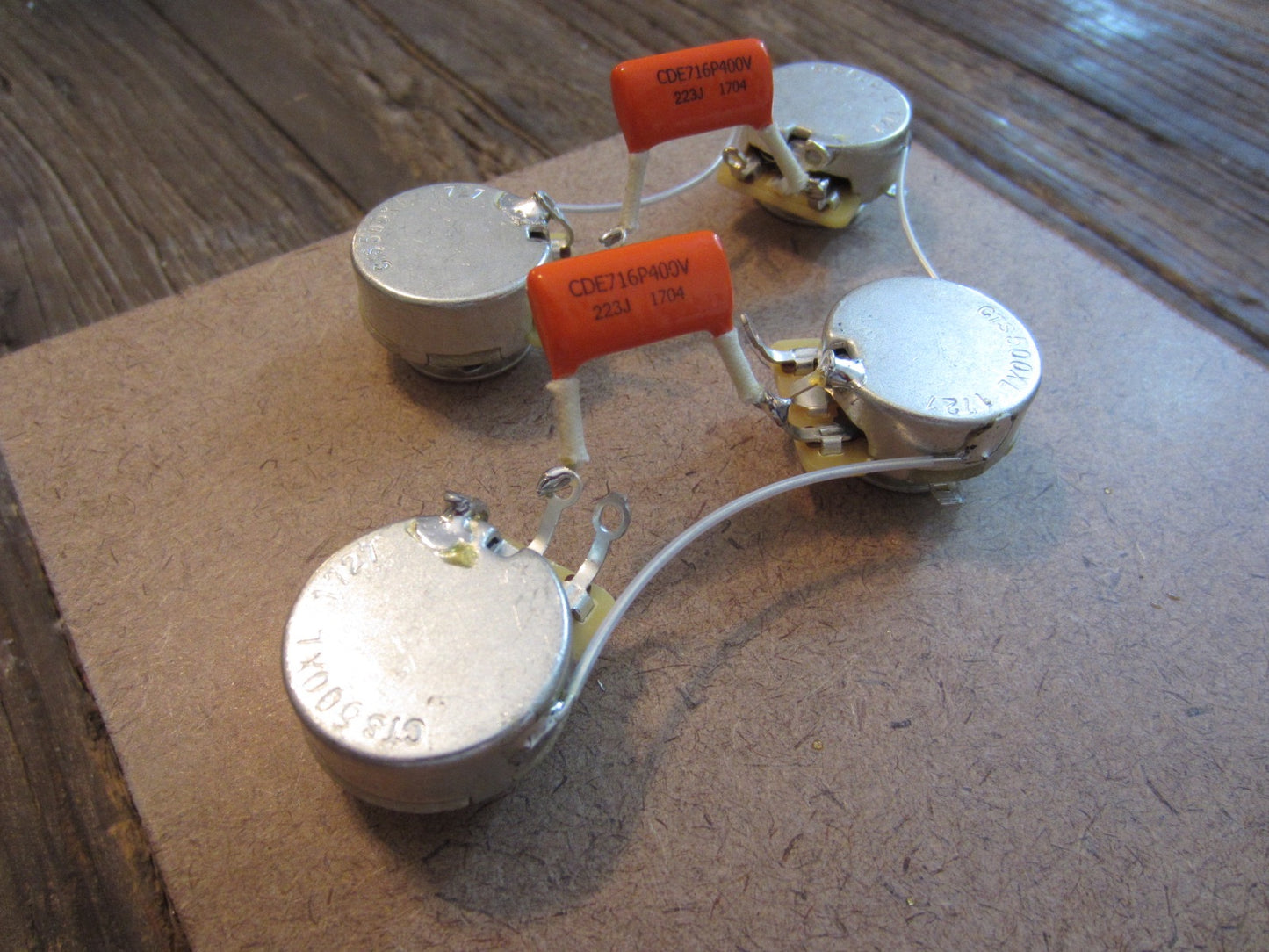

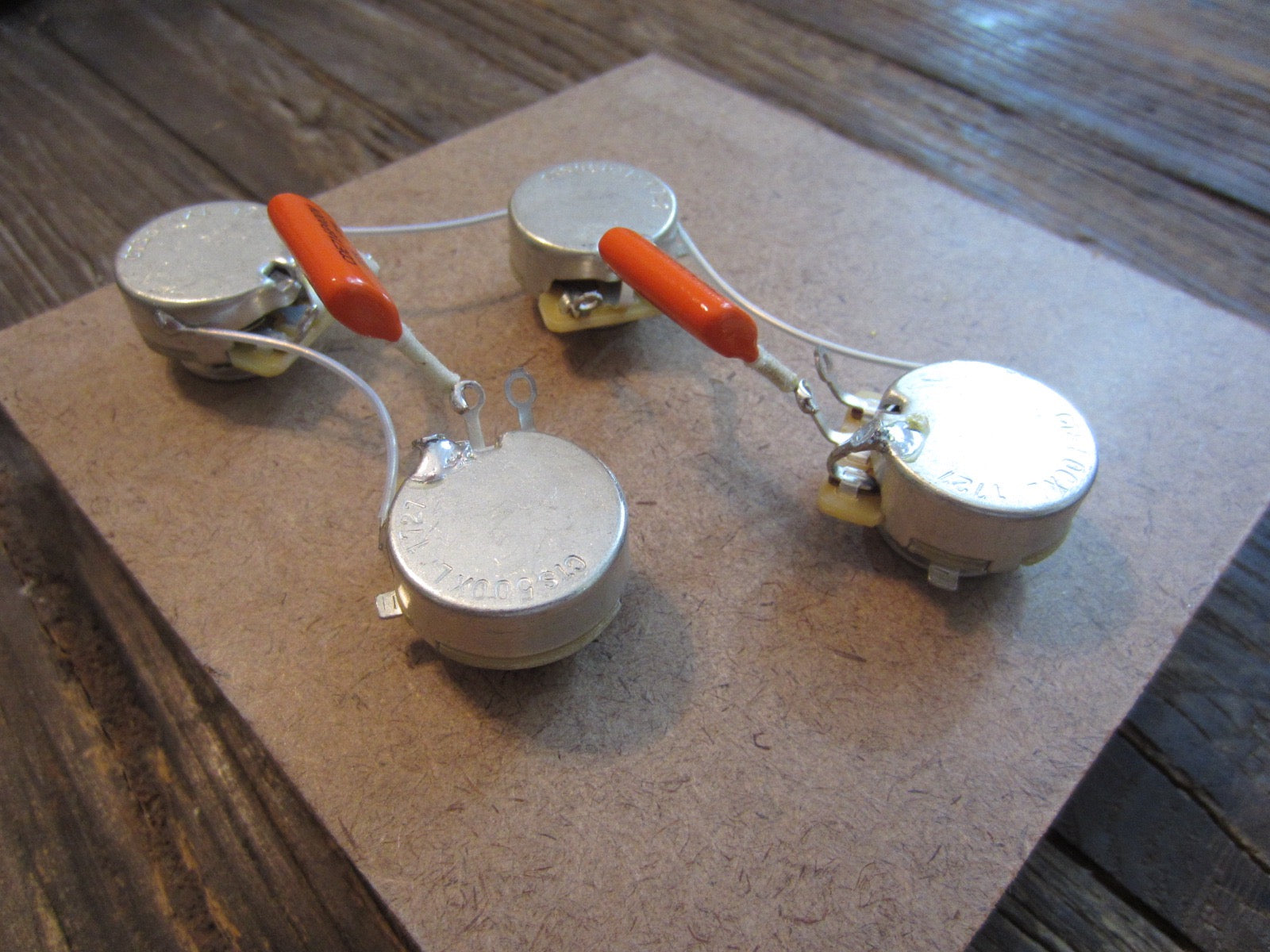

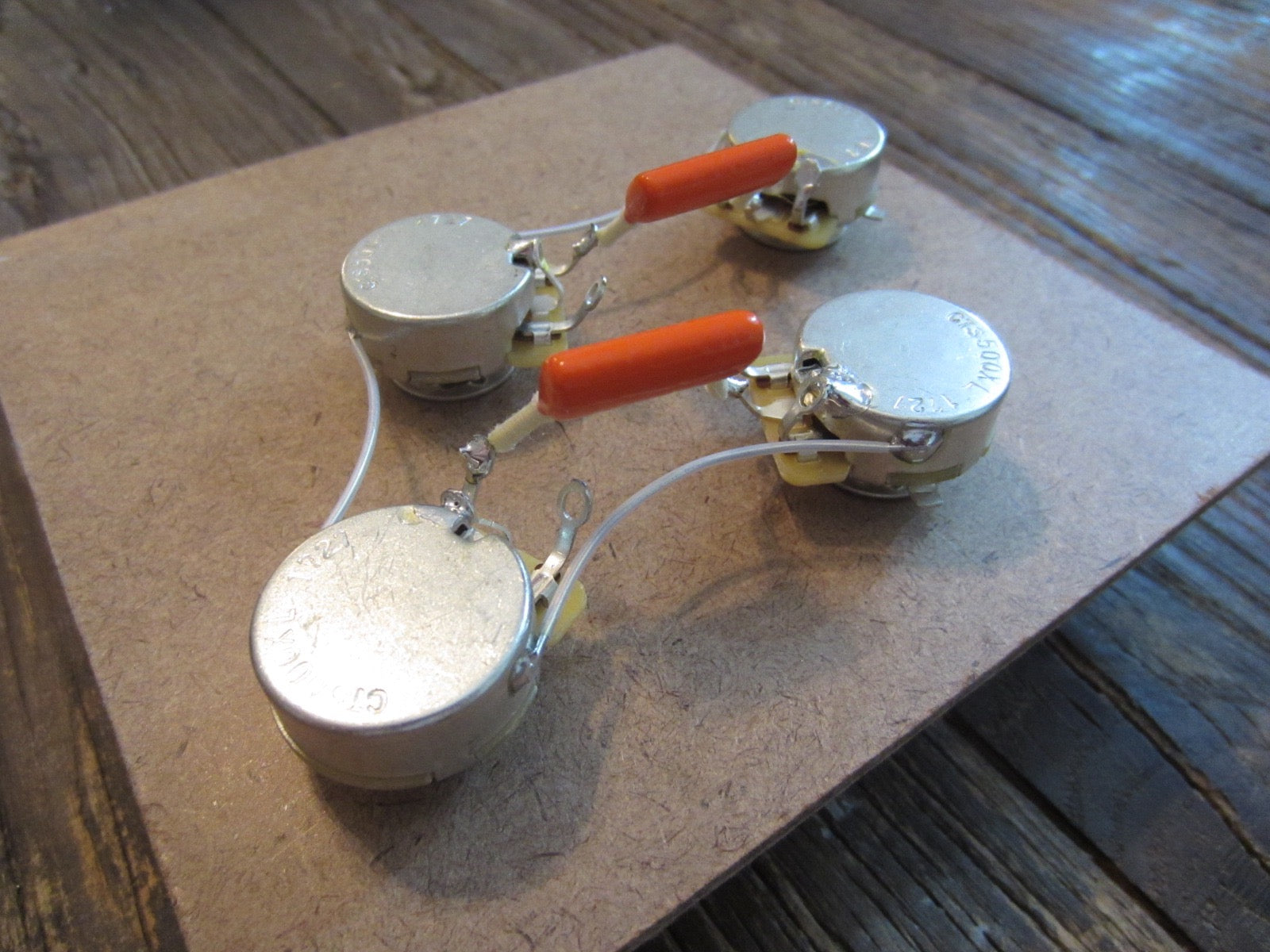

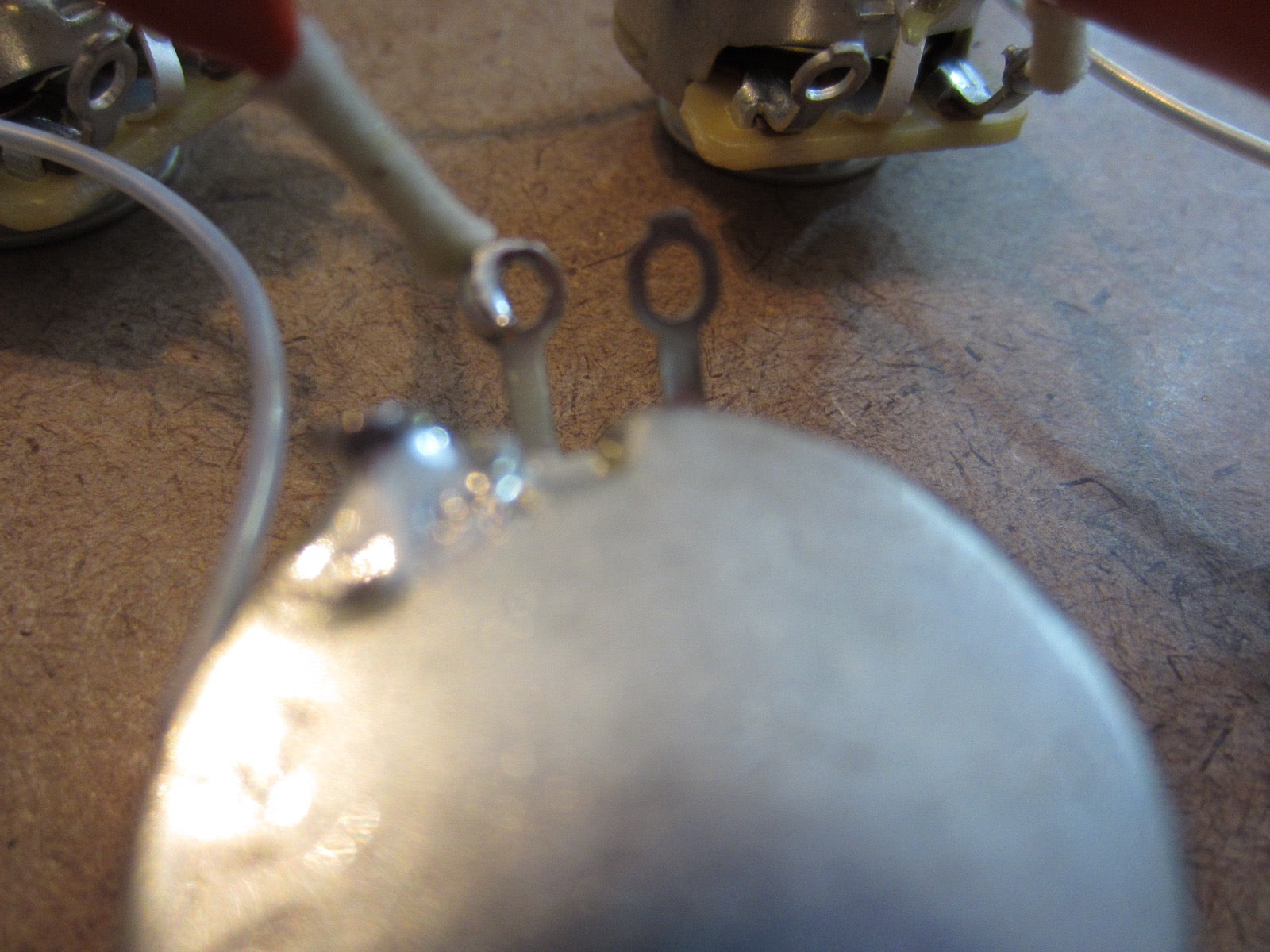

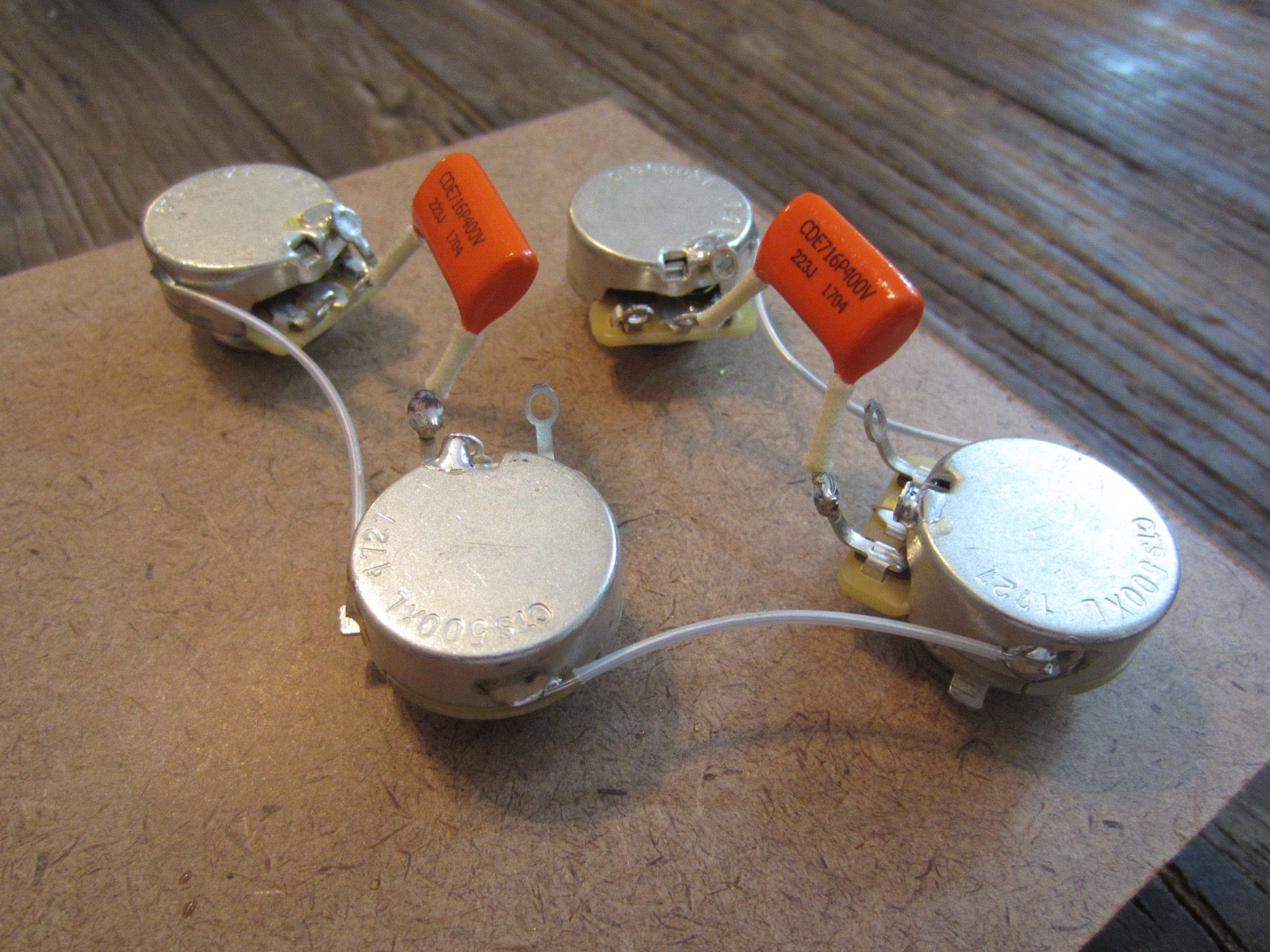

  • 4 x CTS 550k w/ Smooth 20% Audio Taper Long Shaft Potentiometers w/ Brass Bushing & Shaft | Spec'd to 550 kΩ w/ a 9% Tolerance by CTS then carefully matched within a 2% Tolerance at time of assembly.
  • 2 x Orange Drop 716P .022µF Capacitors, .015µF, .033µF, and .047µF as also available upon request.
  • 20 AWG Buss Wire for the grounding if all potentiometers

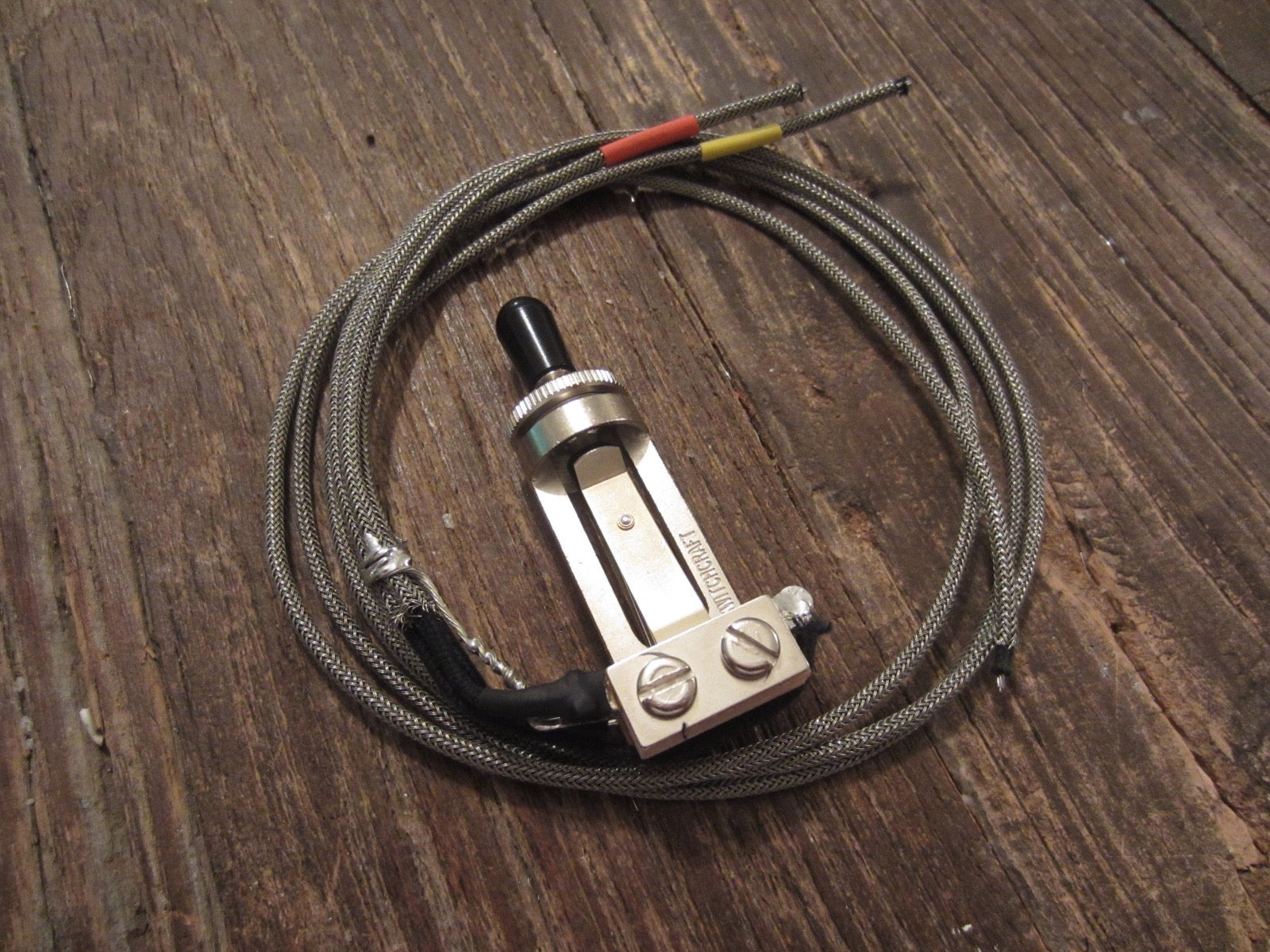

  • 1 x Pre-Wired Switchcraft Standard / Tall Frame 3-Way Toggle w/ Black Toggle Tip, White, Cream, or Amber are available upon request.
  • 1 x Switchcraft #11 Mono Output Jack
  • 1 x 5" Piece of heat shrink tubing to insulate the output jack lead in the cavity.

 Simply drop this harness in to your guitar and connect the pickup leads, selector switch leads, and appropriate grounds.

All Potentiometers are matched to have a 2% +/- Tolerance and ensured exceed 500k.  Selector Switch Tested as well.

Note:  CTS Potentiometers Require 24-Spline Fine Knurl Knobs.  Long shaft potentiometers are idea for Post-77 Gibson LPs except History Reissues (R7, R8, R9).  Many import brands may require the mounting holes to be enlarged to accept the 3/8" potentiometer bushings.
