Important: While most all wiring kits are made-to-order and still ship within 24 hours, more complex kits (such as this one) take a considerable amount time and focus to build and test. Every effort will be made to keep one "on deck" ready to go, however if not please allow for slightly extended shipping time frame.
Here's a fantastic and easy mod to give your Squier Paranormal Thinline Cabronita Telecaster a few extra tones to keep in your pocket.

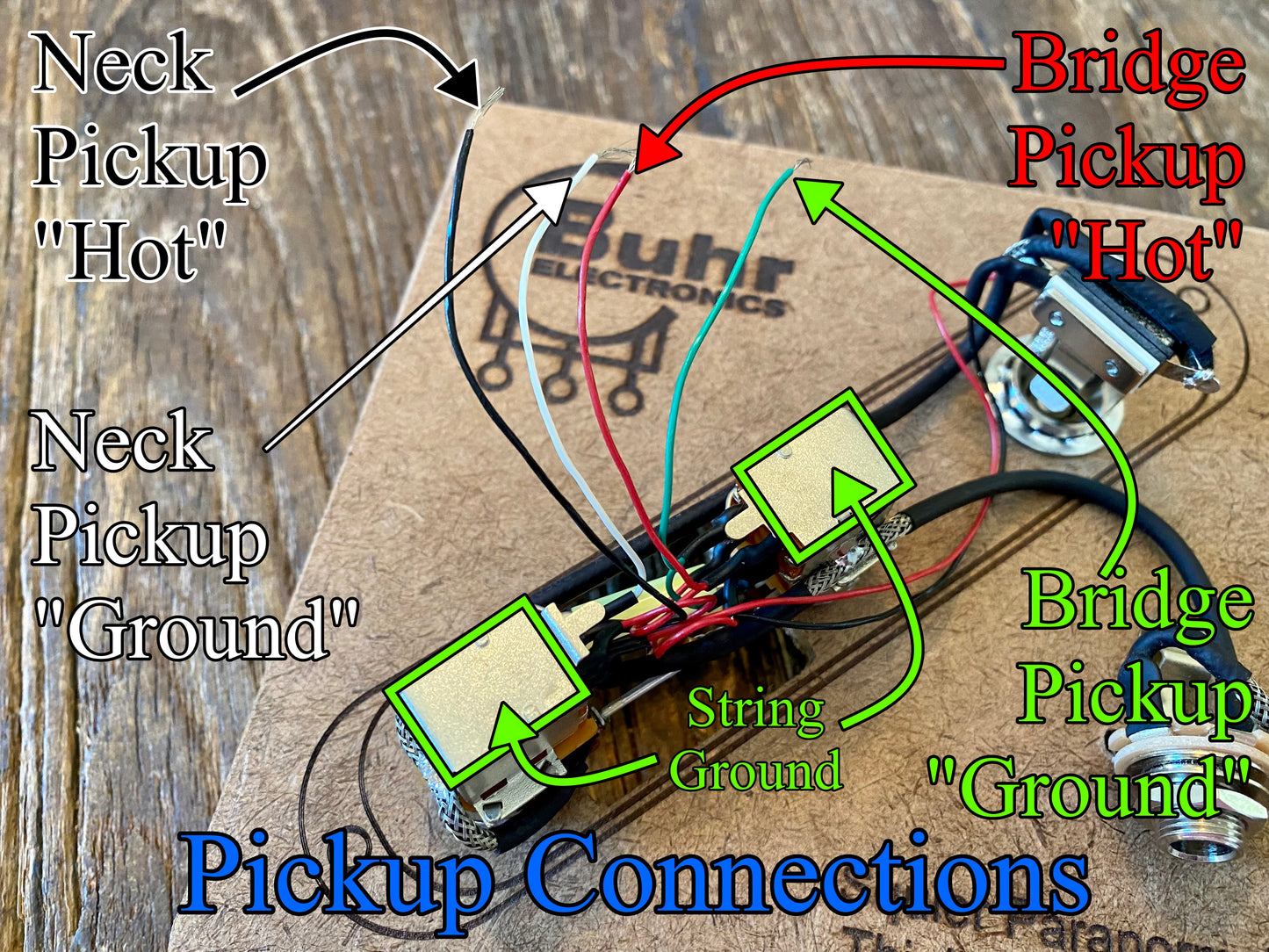

The toggle switch functions as normal - Neck, Neck/Bridge in Parallel, Bridge. Pull the tone control up and the phase of the bridge pickup is reversed (this difference is only noticeable with both pickups are engaged - either through the toggle being in the middle position or the volume control pulled to engage in series operation). Pull the volume control to put the two pickups in series regardless of the toggle position - no dead spots.

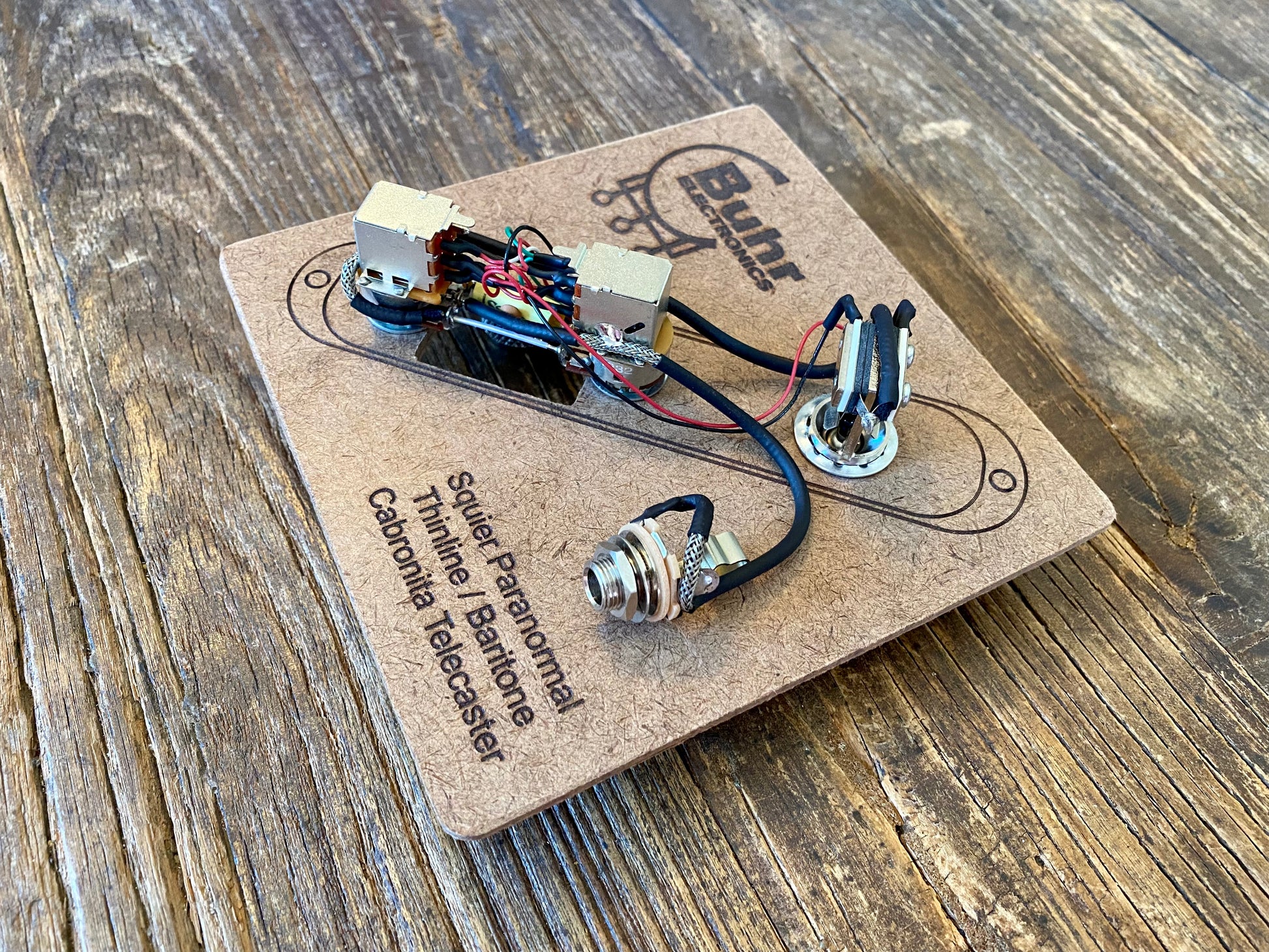

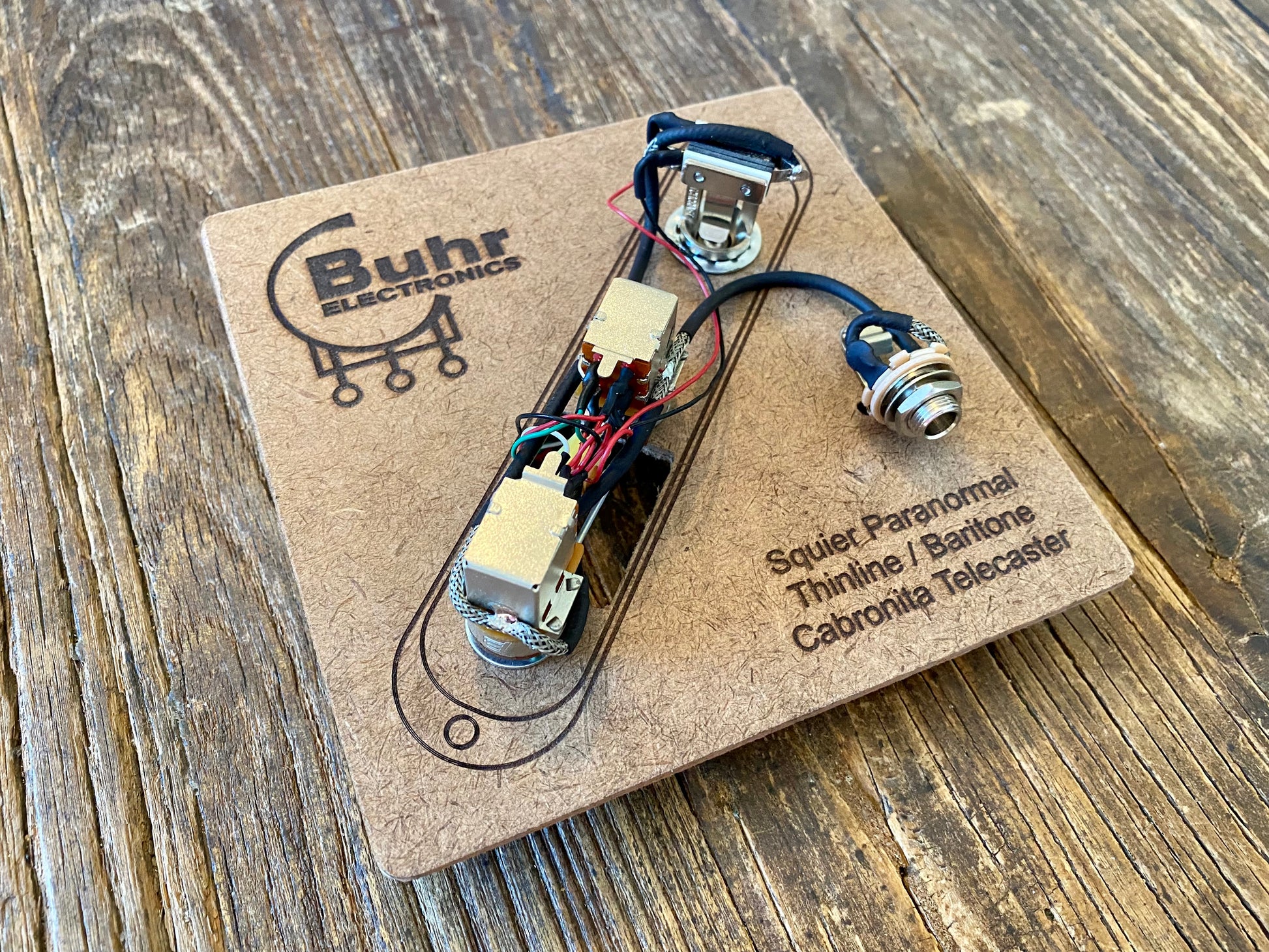

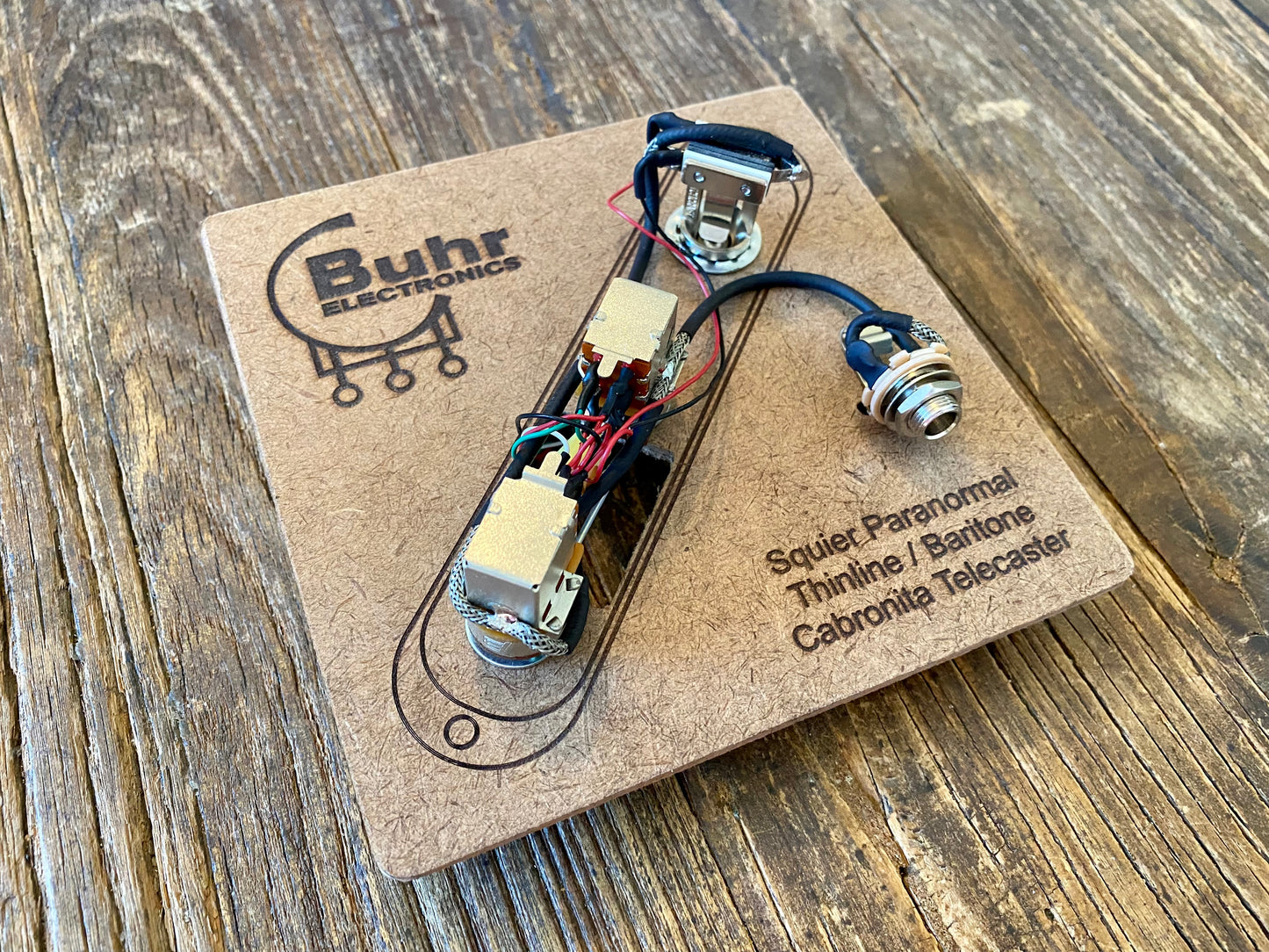

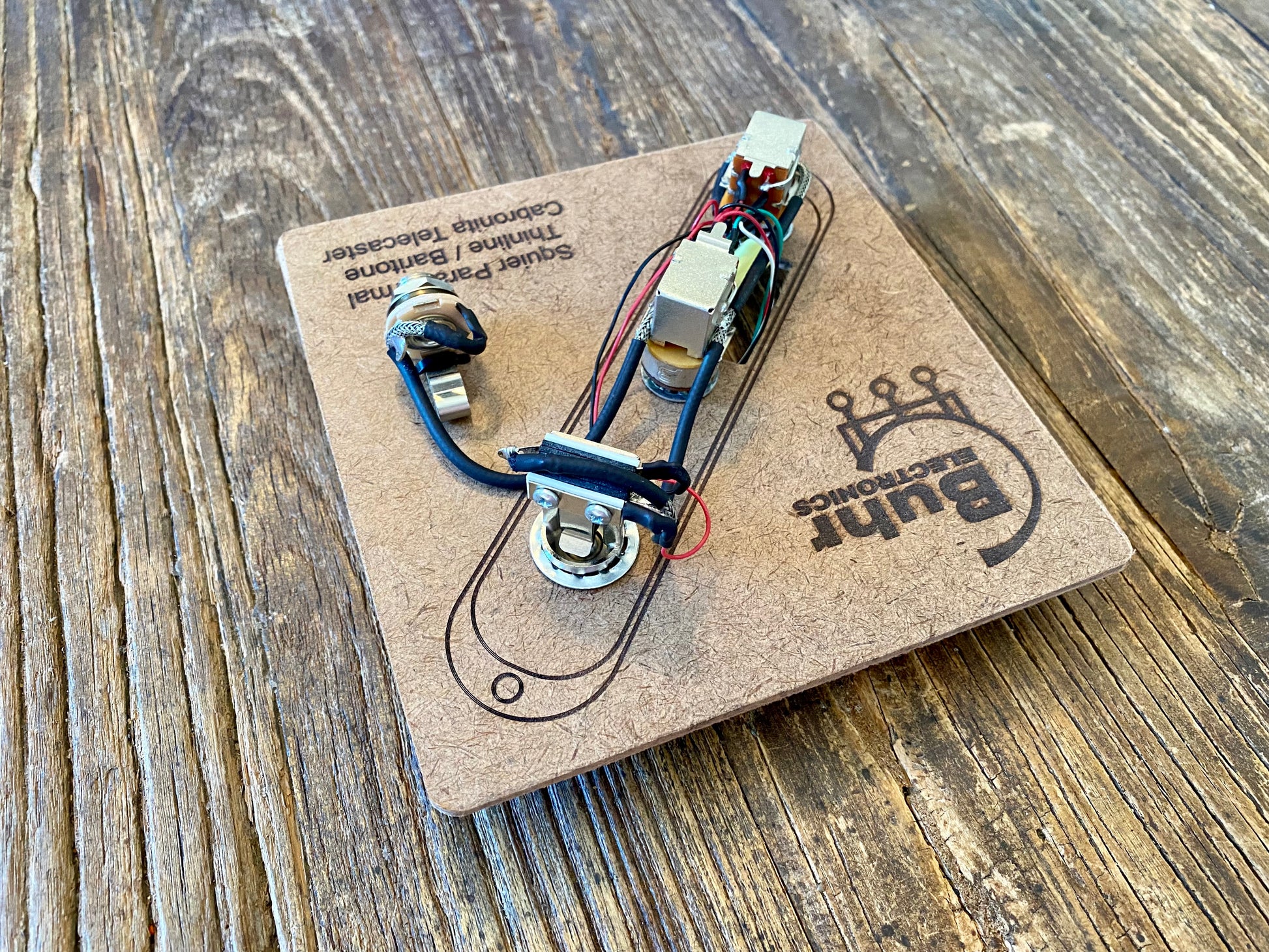

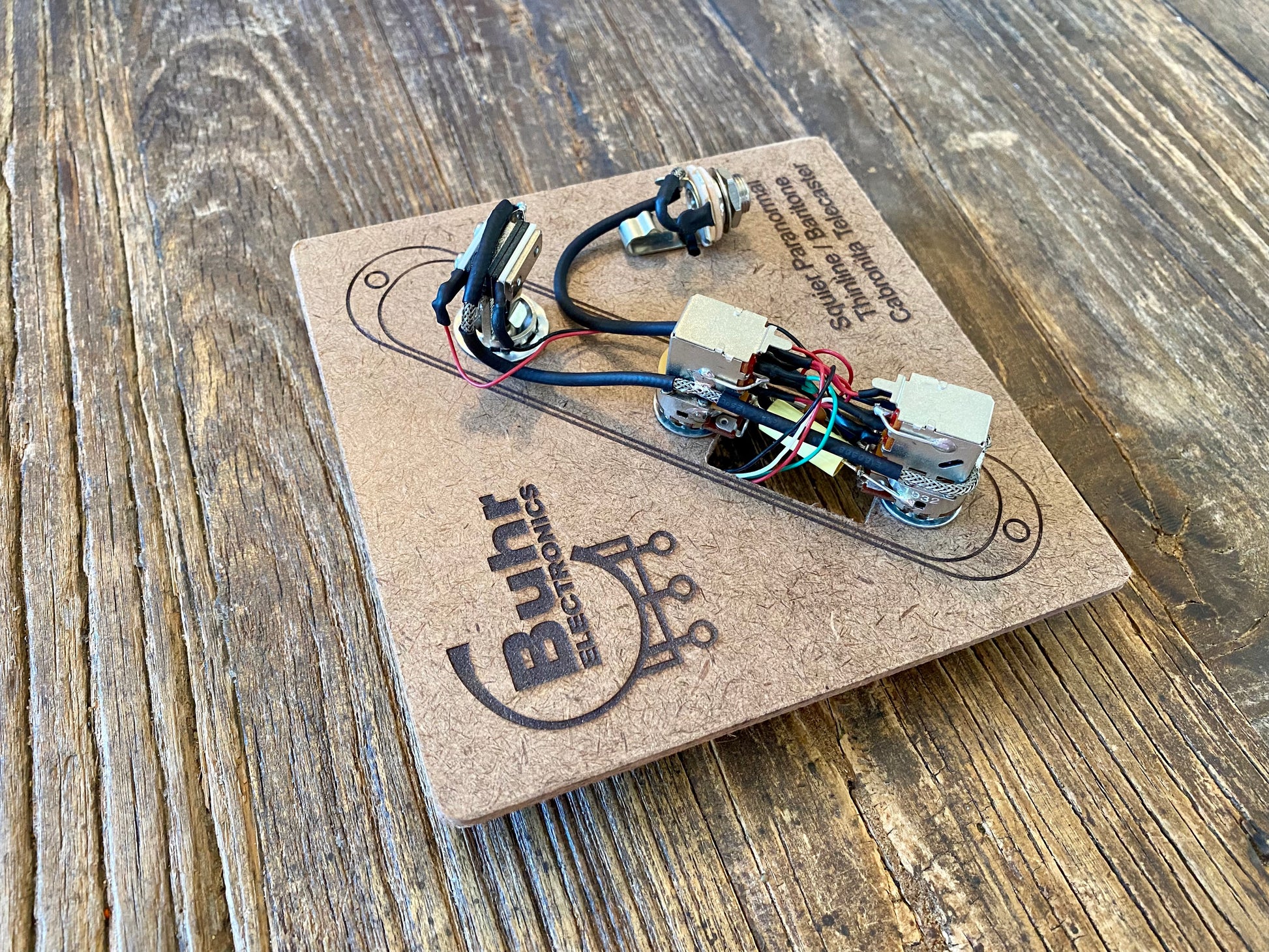

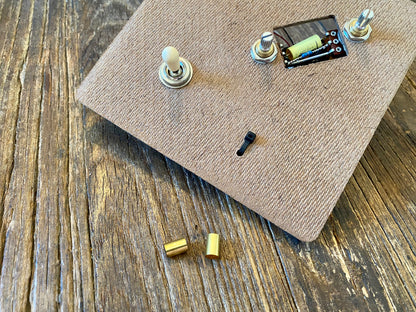

Wired with top quality components from top to bottom
Bourns PDB183-GTR Push/Pull DPDT Volume & Tone Controls
Switchcraft Short Frame Toggle Switch
Optional Switchcraft Switch Tips (Factory Switch Tip Will Not Fit)
Switchcraft #11 Mono Output Jack
Sozo Yellow Mustard .022 µF Capacitor
.001 µF Ceramic Disc Capacitor / 150 kΩ Metal Film Resistor Treble Bleed
Vintage Style Braided Lead Wire

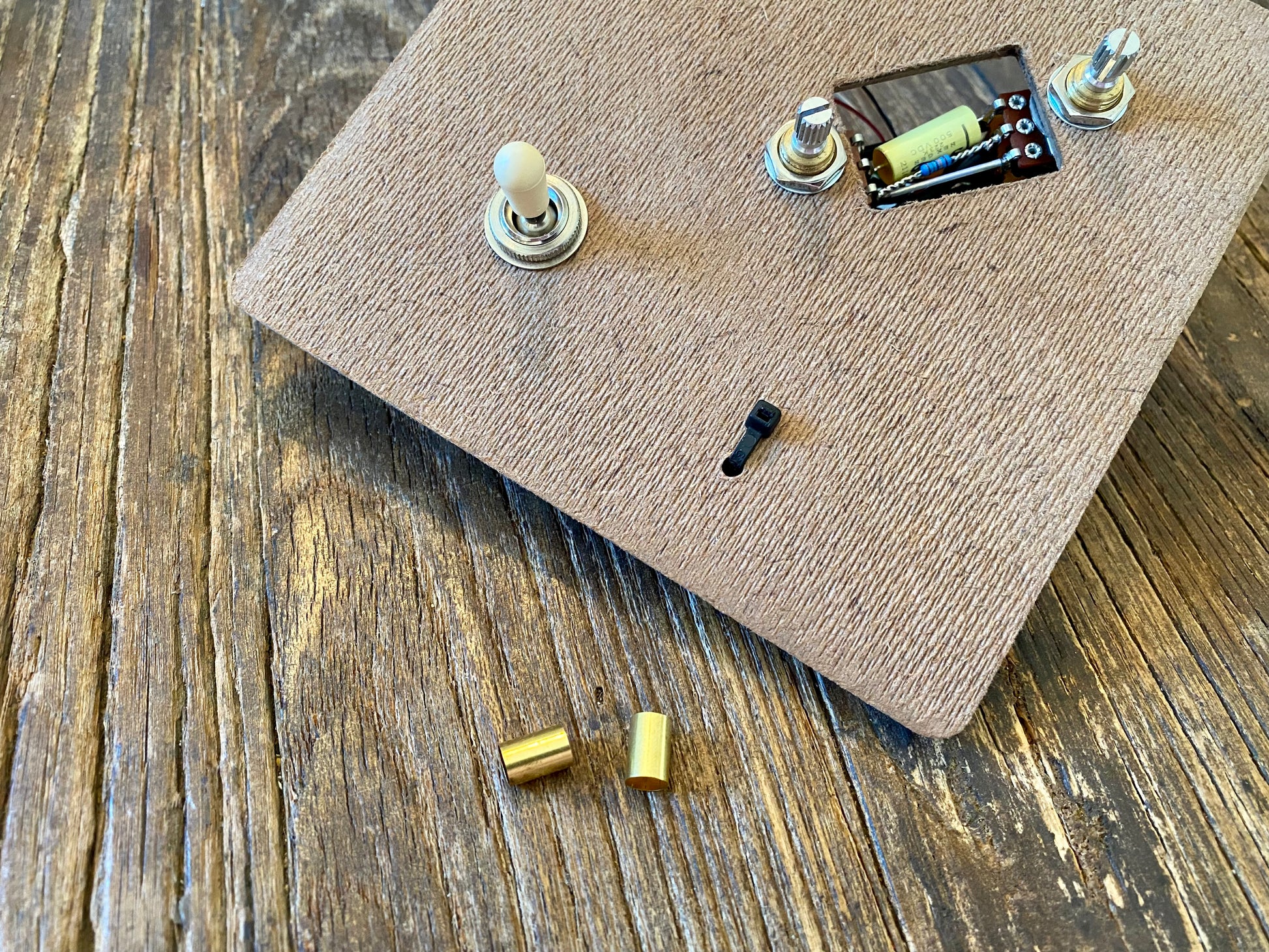

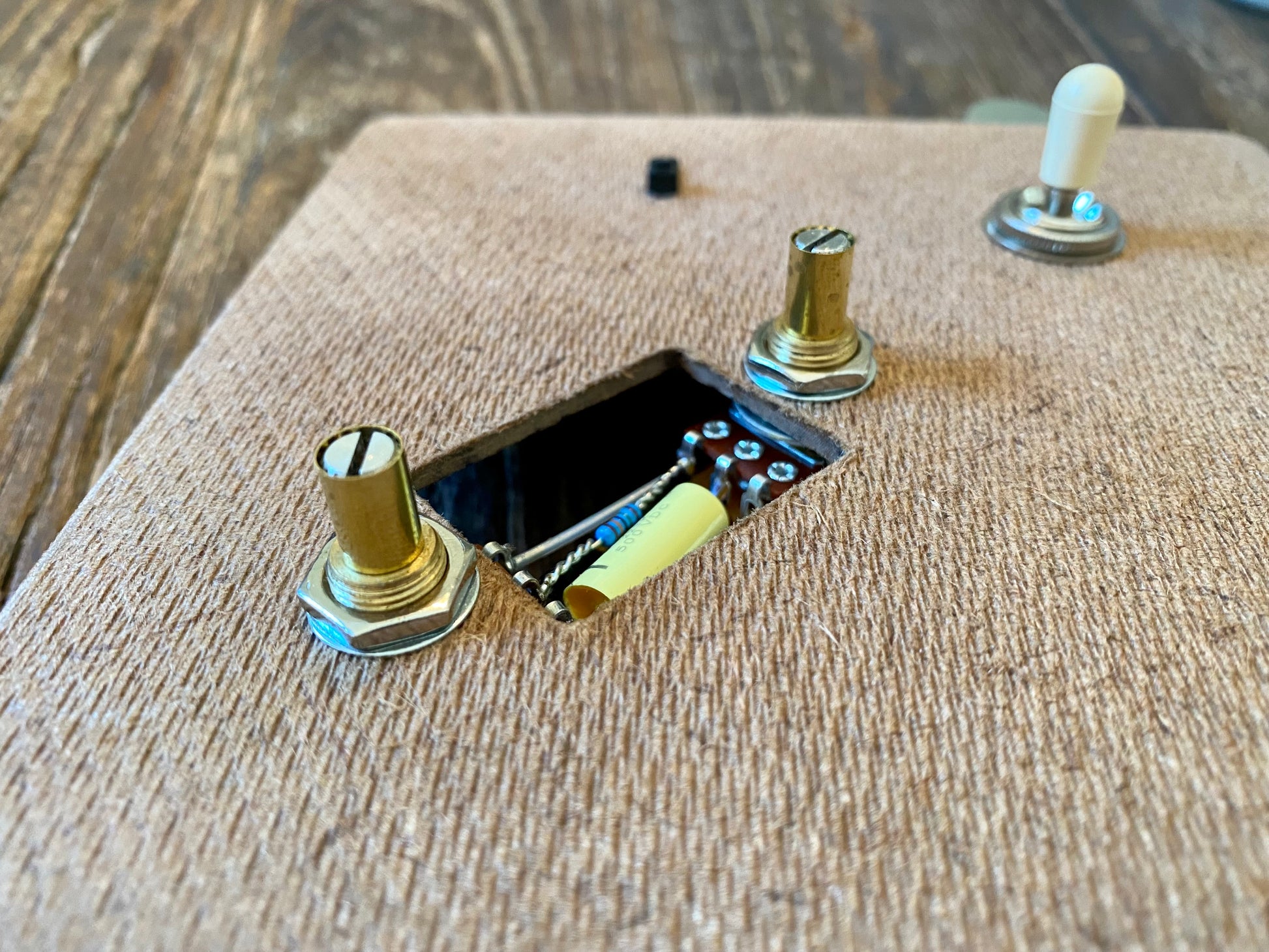

Brass Solid Shaft Conversion Sleeves
This kit was designed with the Squier Paranormal Thinline Cabronita Telecaster. Potentiometer mounting holes and jack cup need to be enlarged to 3/8". This kit should also work with the Baritone Cabronita as well in theory - additional modifications to the Baritone model's factory pickups will need to be completed. Please message me prior to purchase if you have the Baritone version for what will need to be done.
