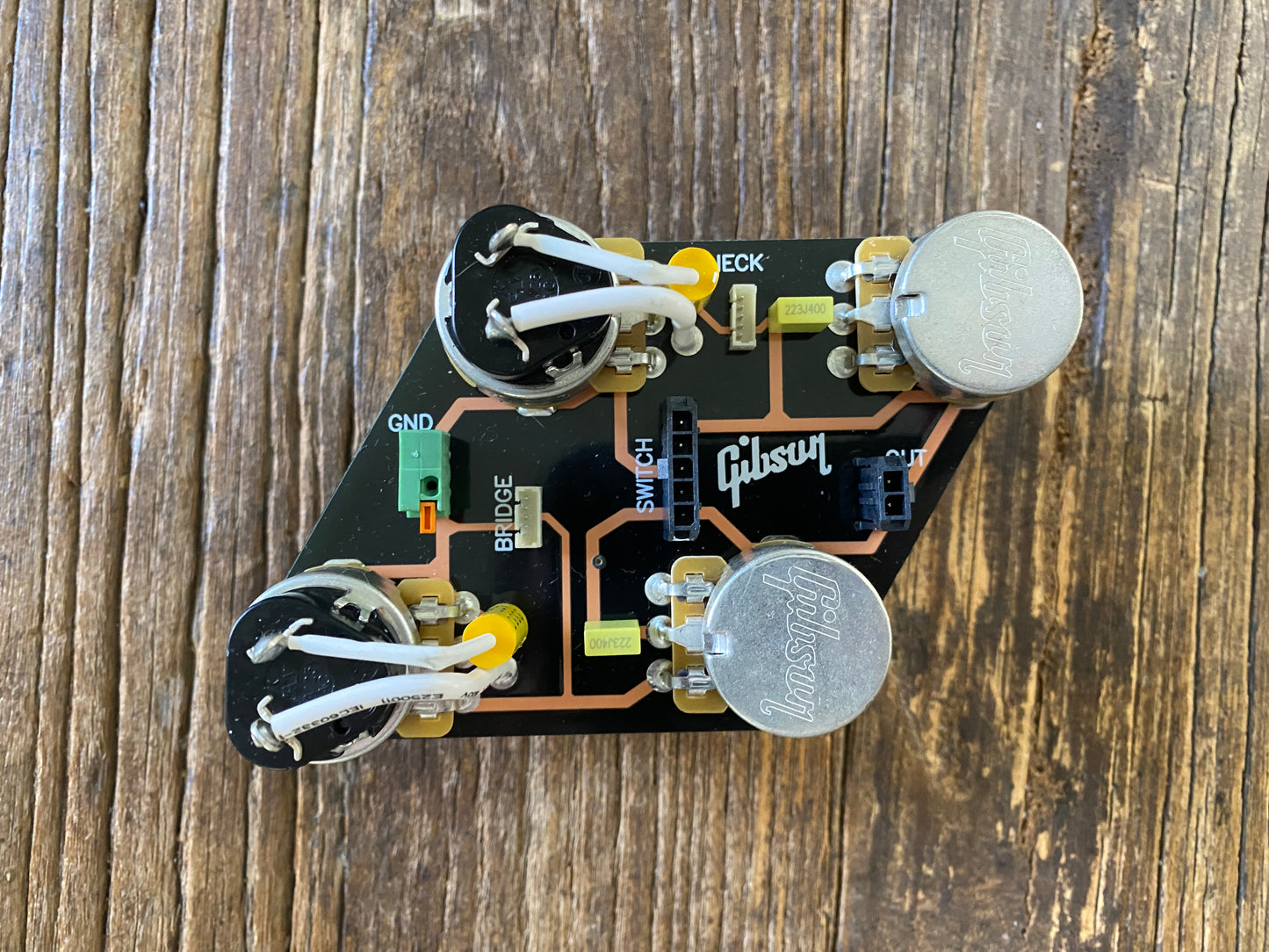

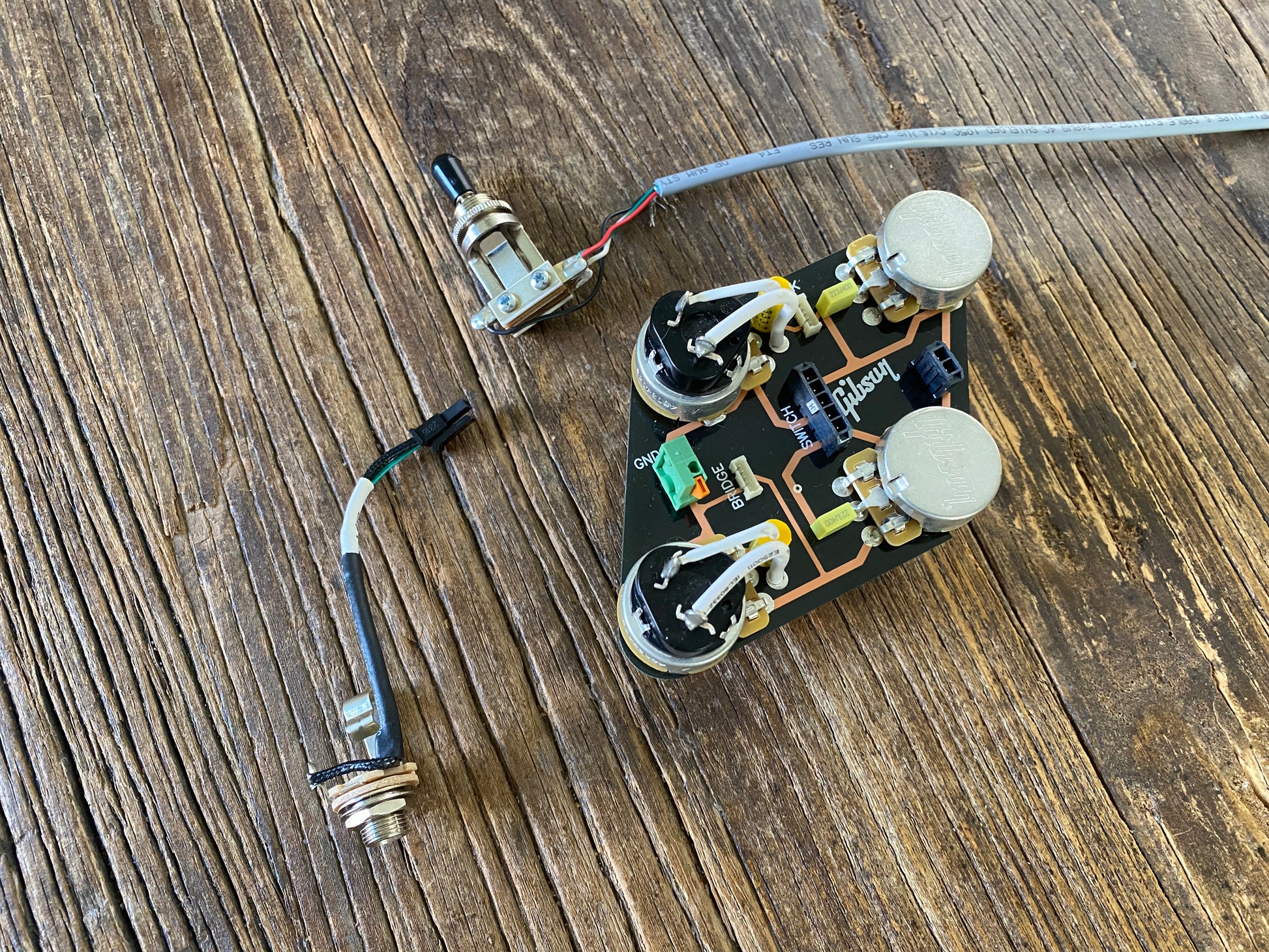

Here's a super clean Gibson USA Full PCB w/ Toggle and Jack from a 2022 Les Paul Studio. This wiring harness is compatible with Gibson 4-Conductor quick connect pickups.
Basic Les Paul functions with a volume and tone for each pickup with added "Tuned" coil splitting.
- Bridge Volume - 528 kΩ
- Neck Volume - 467 kΩ
- Bridge Tone - 472 kΩ
- Neck Tone - 436 kΩ
Tone Capacitors are .022 µF and wired "Modern" style.

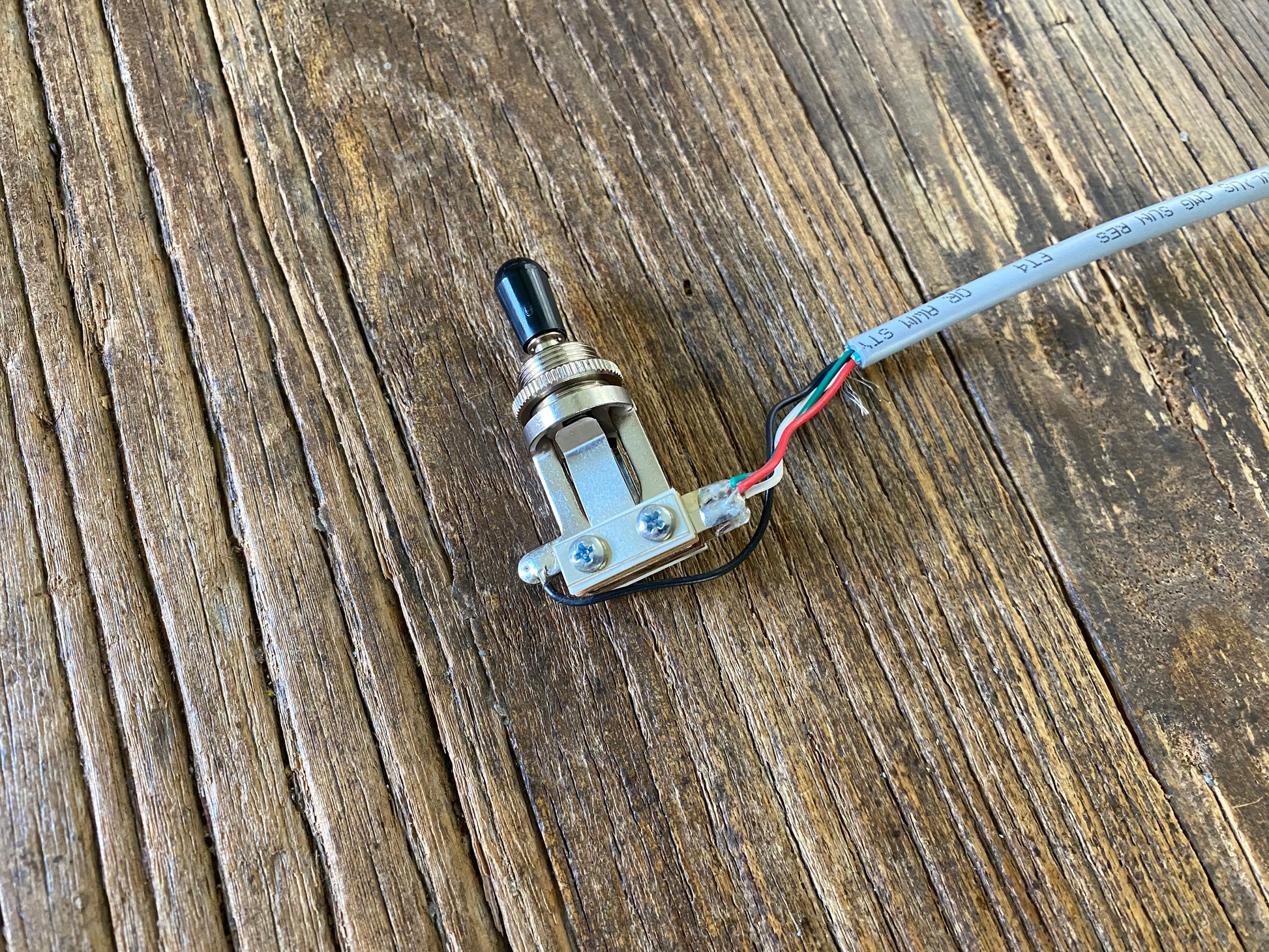

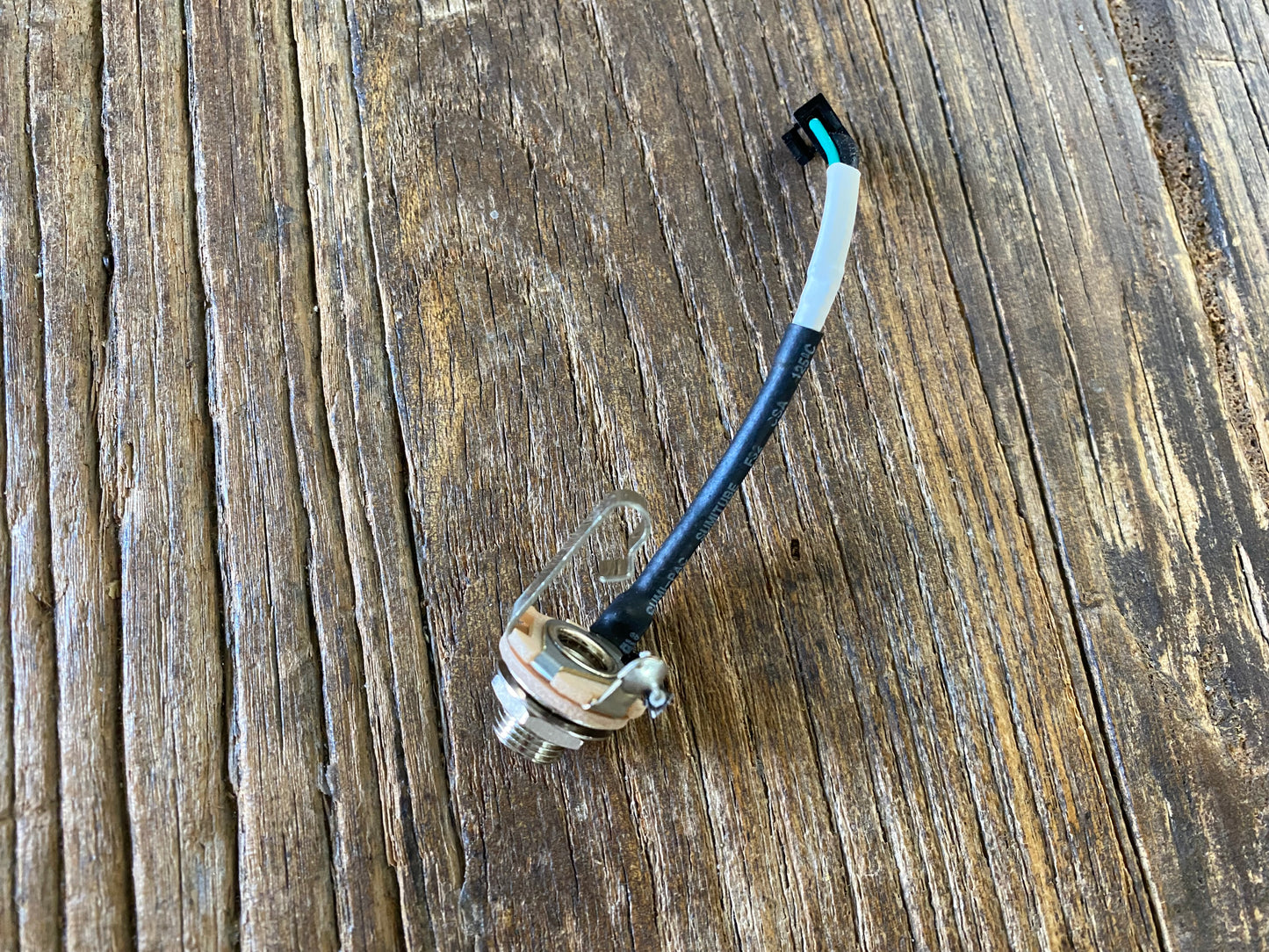

The toggle and jack are both Switchcraft.
