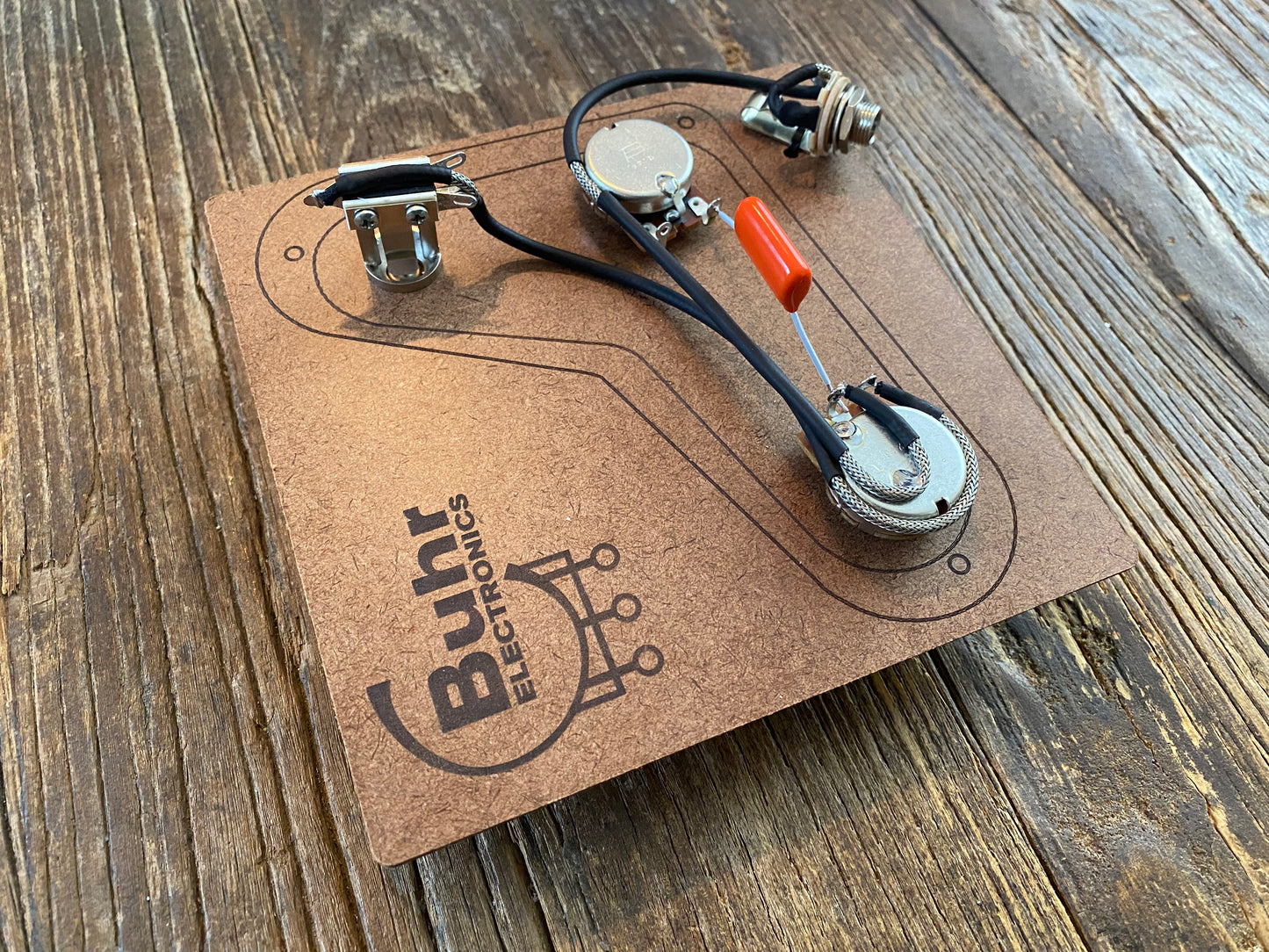

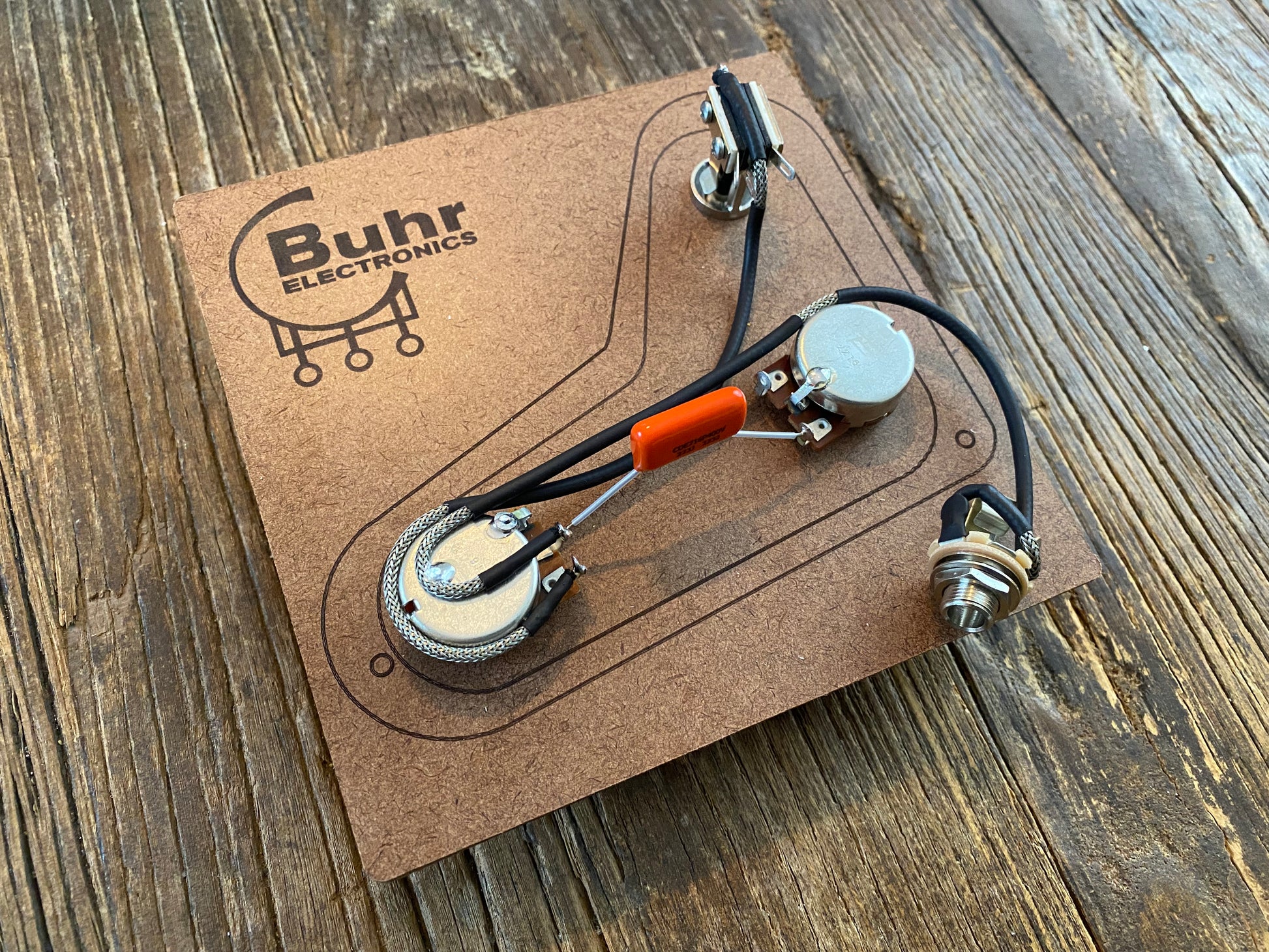

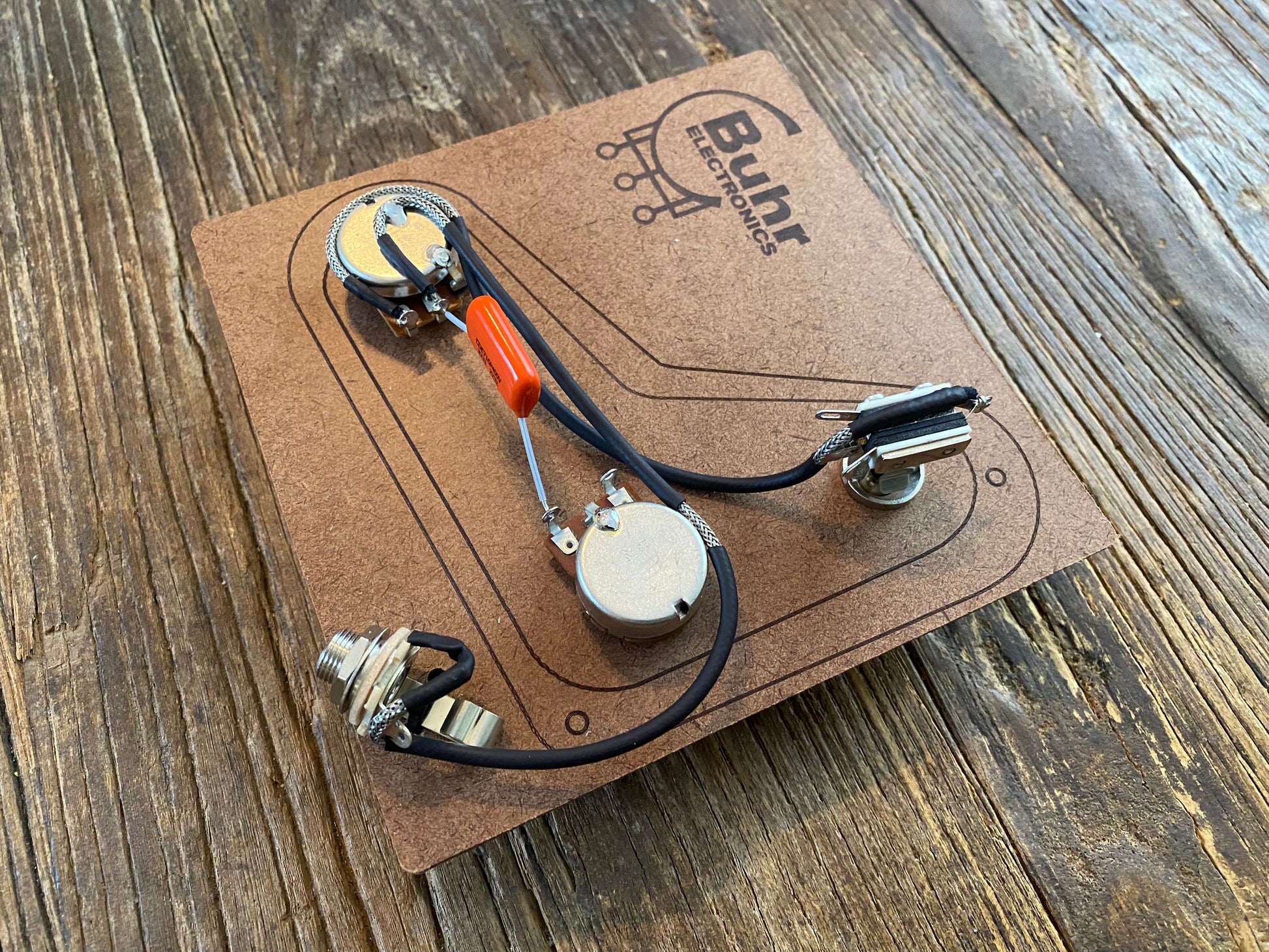

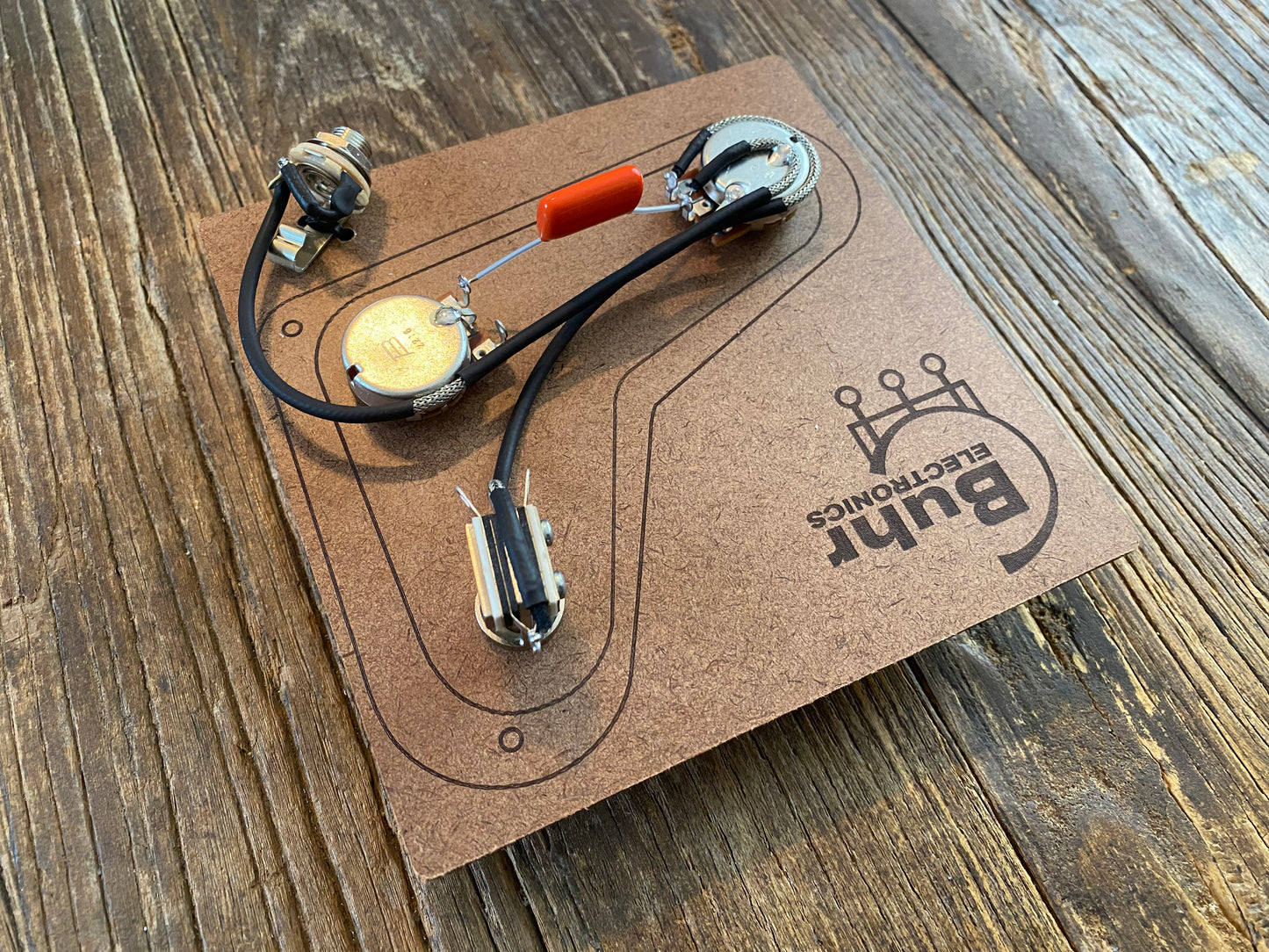

PRS 50s Style Toggle Wiring Kit | Bourns PDB241 Low-Friction Audio Taper Potentiometers, Orange Drop 716P, Switchcraft Toggle & Jack

Buhr Electronics

Regular price $56.90

"50s" Style Wiring (Tone Control after Volume Control) with Top Quality Components

  • Matched Bourns PDB241 Low-Friction Audio Taper 18-Spline Split Shaft Potentiometers | Choose Tolerance Spec
  • Switchcraft Short Frame 3-Way Toggle Switch
  • Optional Genuine Switchcraft Switch Tip | Black, White, Cream, or Amber
  • CDE 716P 400v Orange Drop Capacitor | .01, .022, .033, or .047 µF
  • Switchcraft #11 Mono Output Jack
  • Gavitt Vintage Style Braided Shield Wire

I Do Not Recommend a Treble Bleed w/ "50s Wiring" as it can sound artificially bright but one can certainly be added upon request.

Switching Positions as Follows

  • Neck Only
  • Neck & Bridge In Parallel
  • Bridge Only

IMPORTANT - Most "Core" and some "S2" models will not allow the side mount jack to pass through the rear control cavity.  If this applies to your guitar, please let me know via the "Special Instructions for Seller" box from the "Cart" page when placing an order.  The jack can be left disconnected - or - a separate pre-wired jack can be included at no additional charge.
