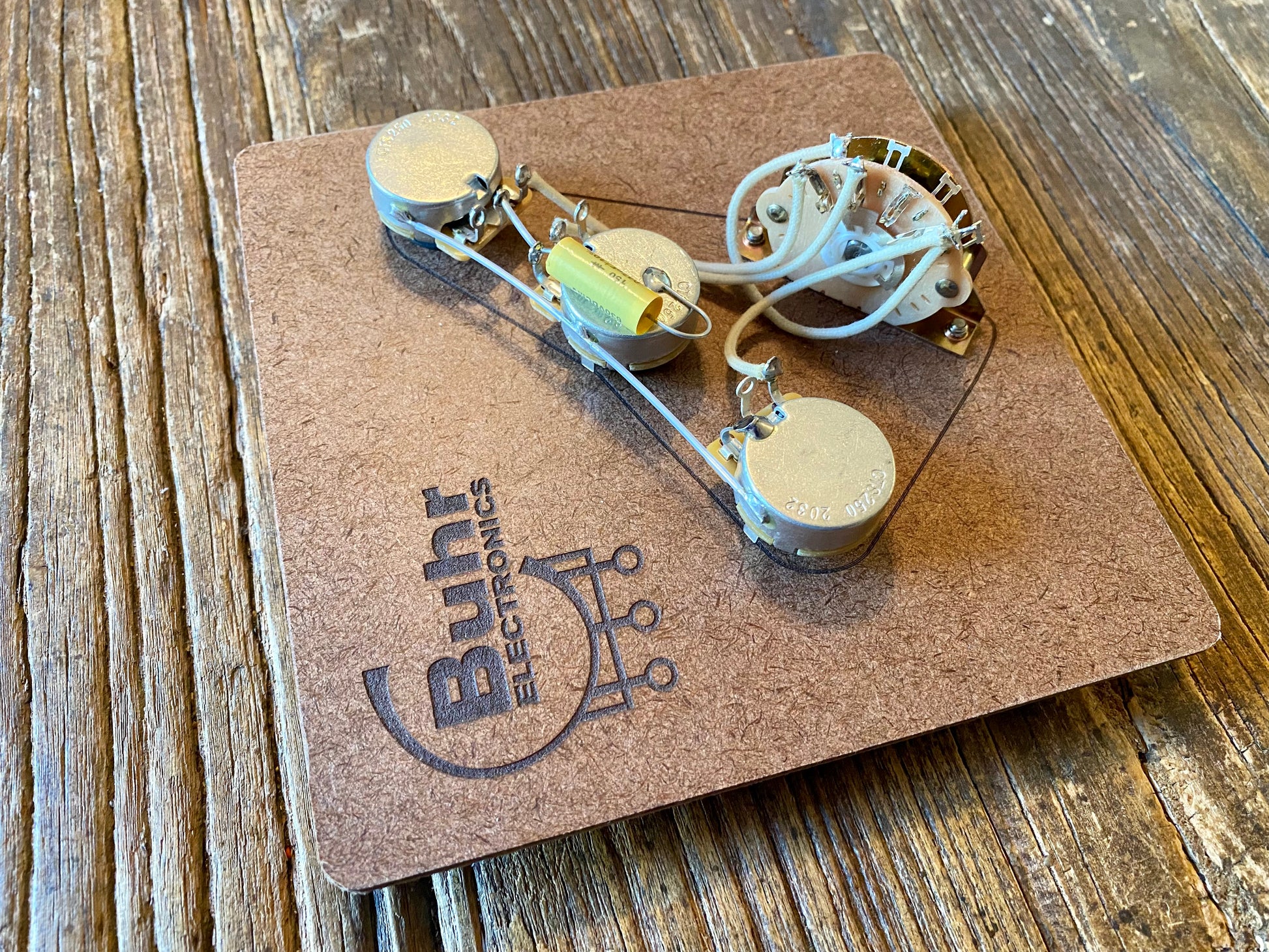

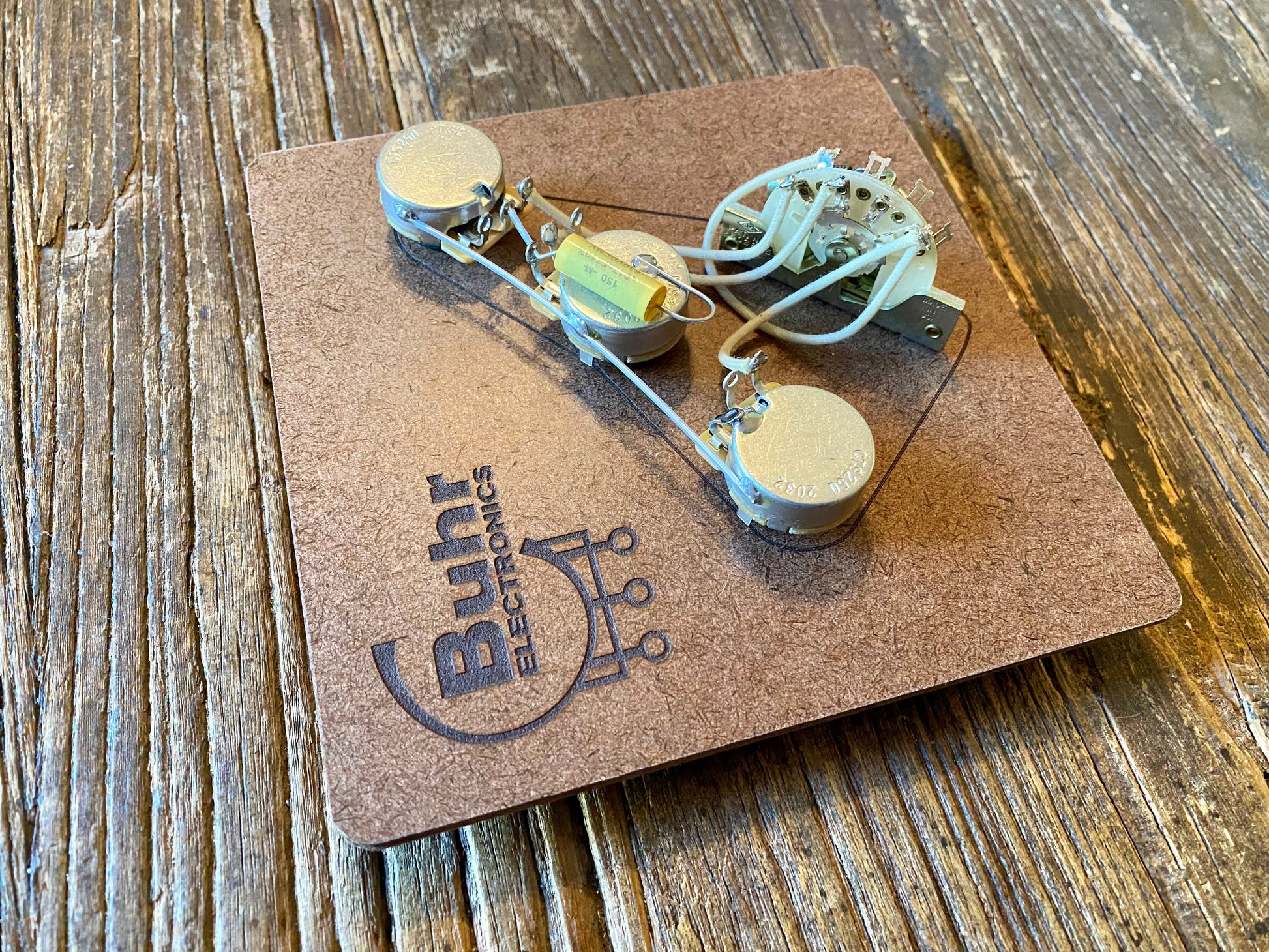

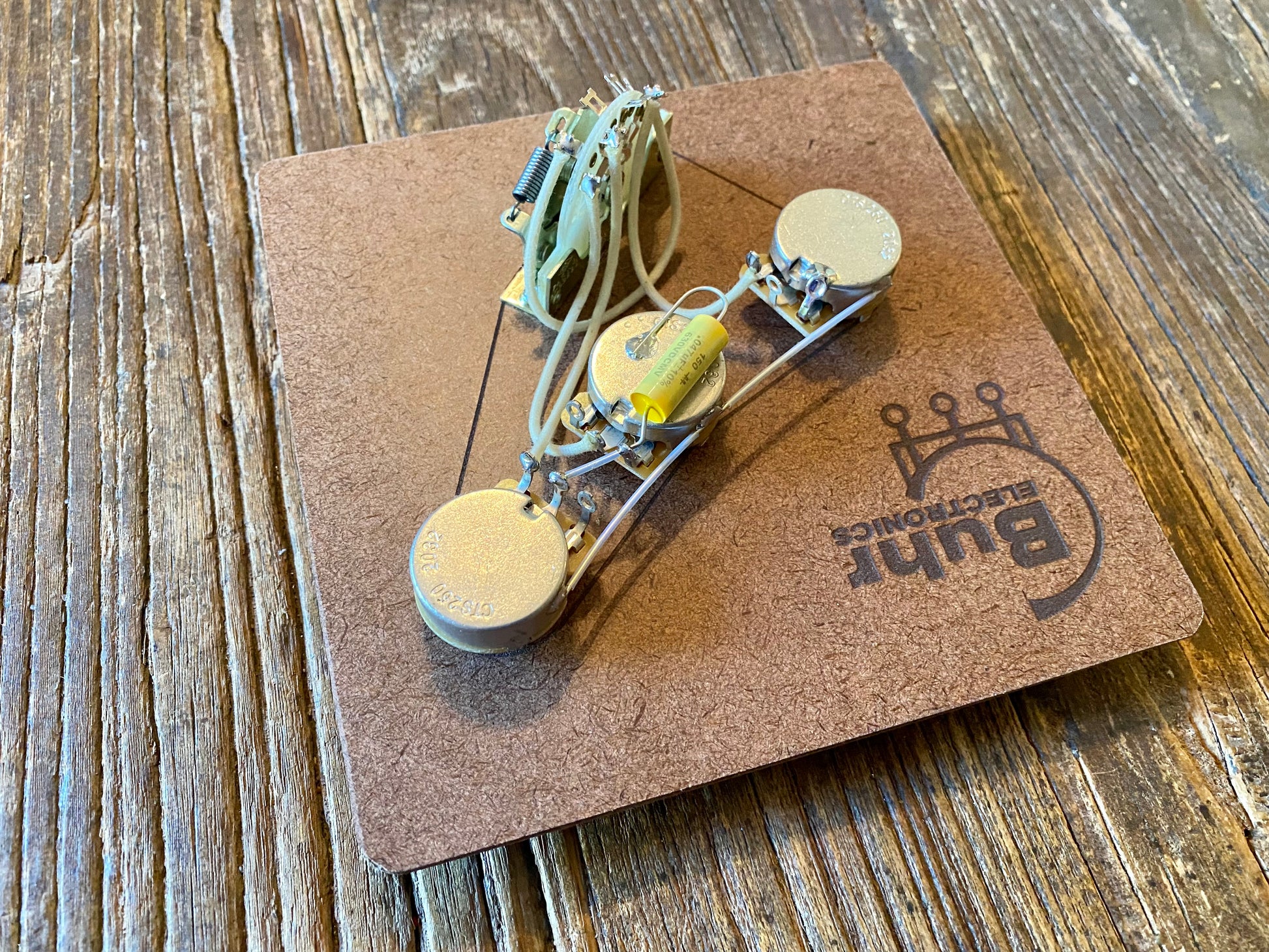

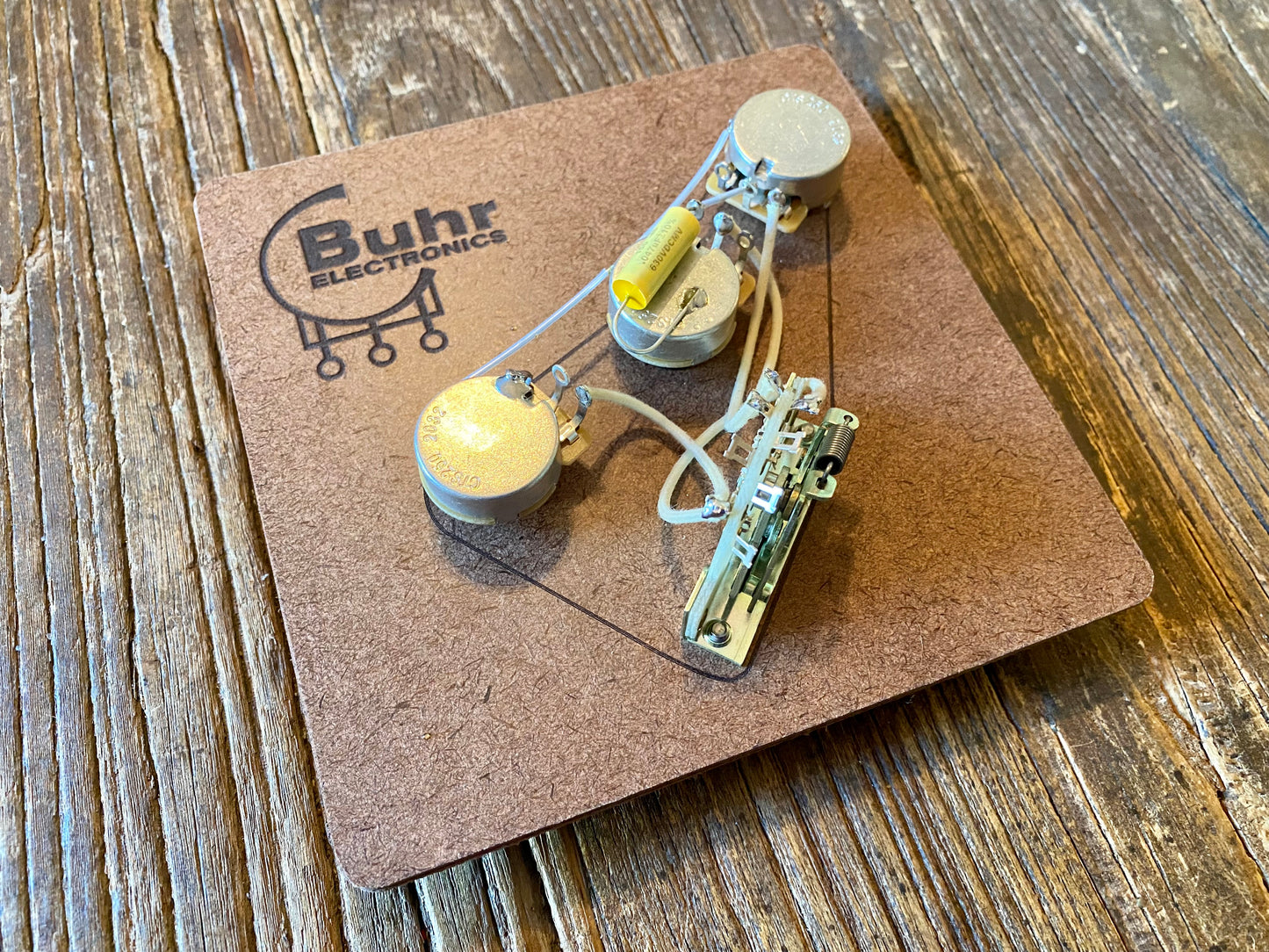

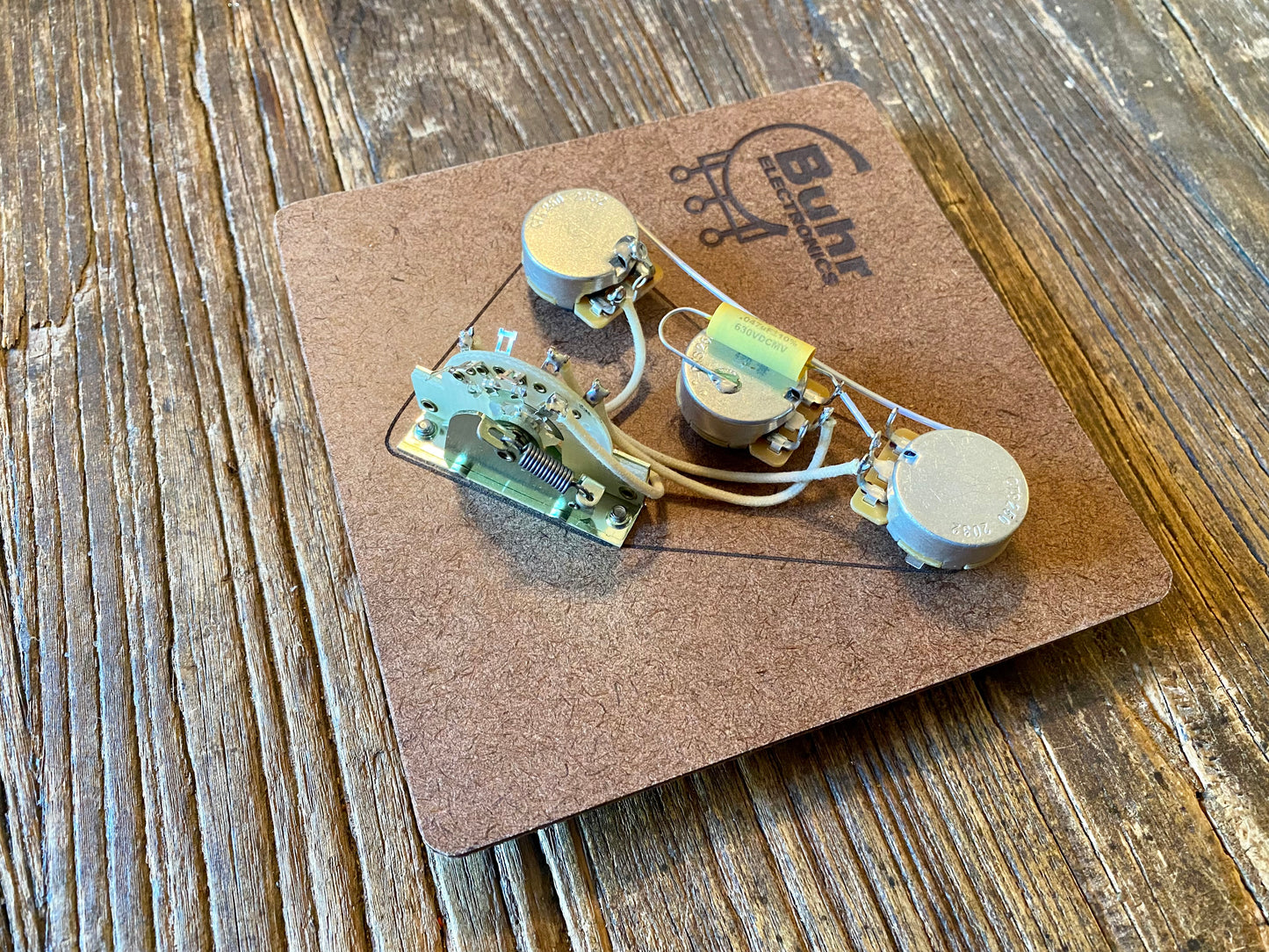

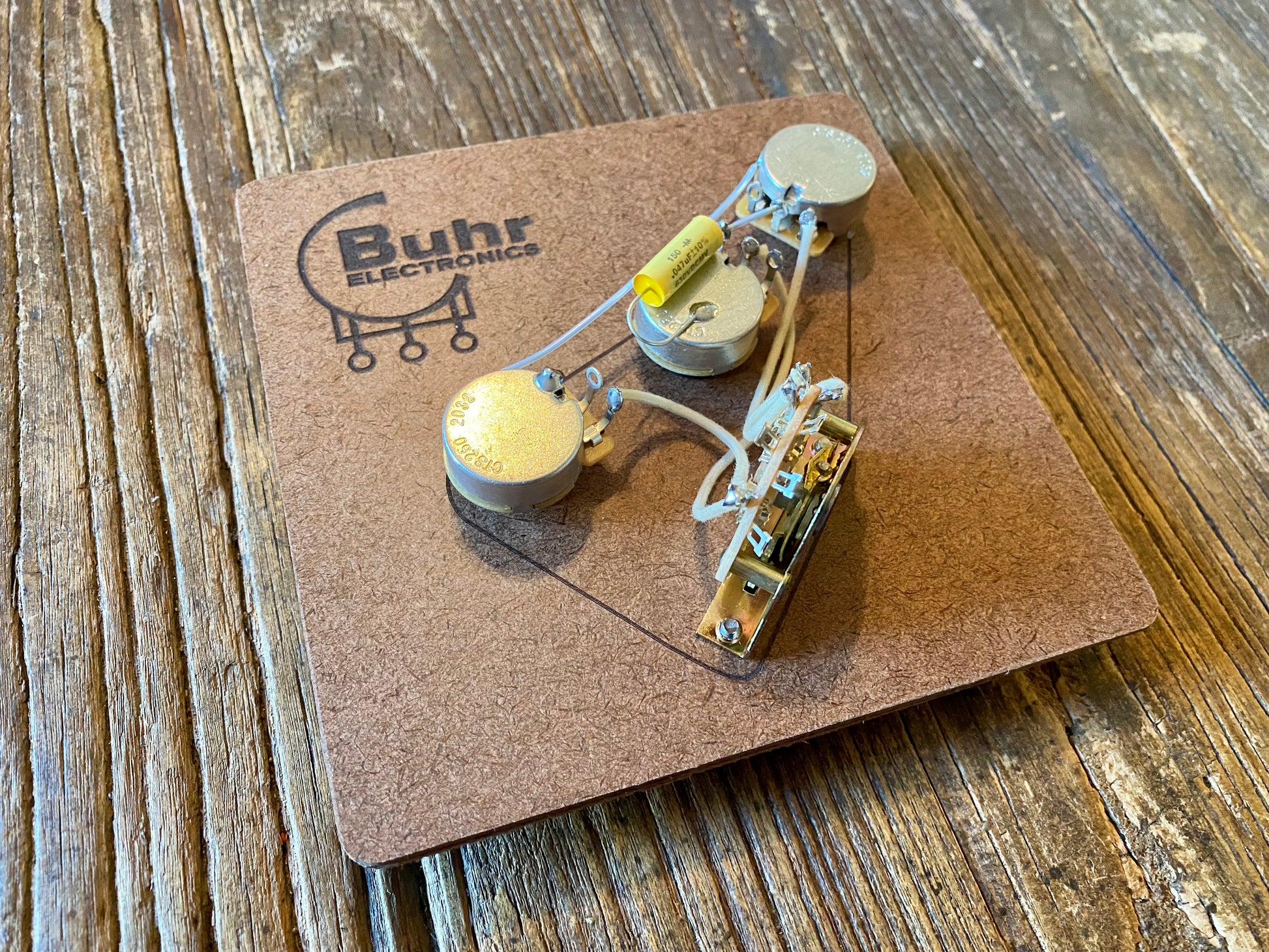

Here is a quick and easy kit to install in your Stratocaster whether as an upgrade, replacing faulty components, or to finish off a scratch/kit/parts build.  Control Spacing is based on Fender specs.

Top quality used throughout:

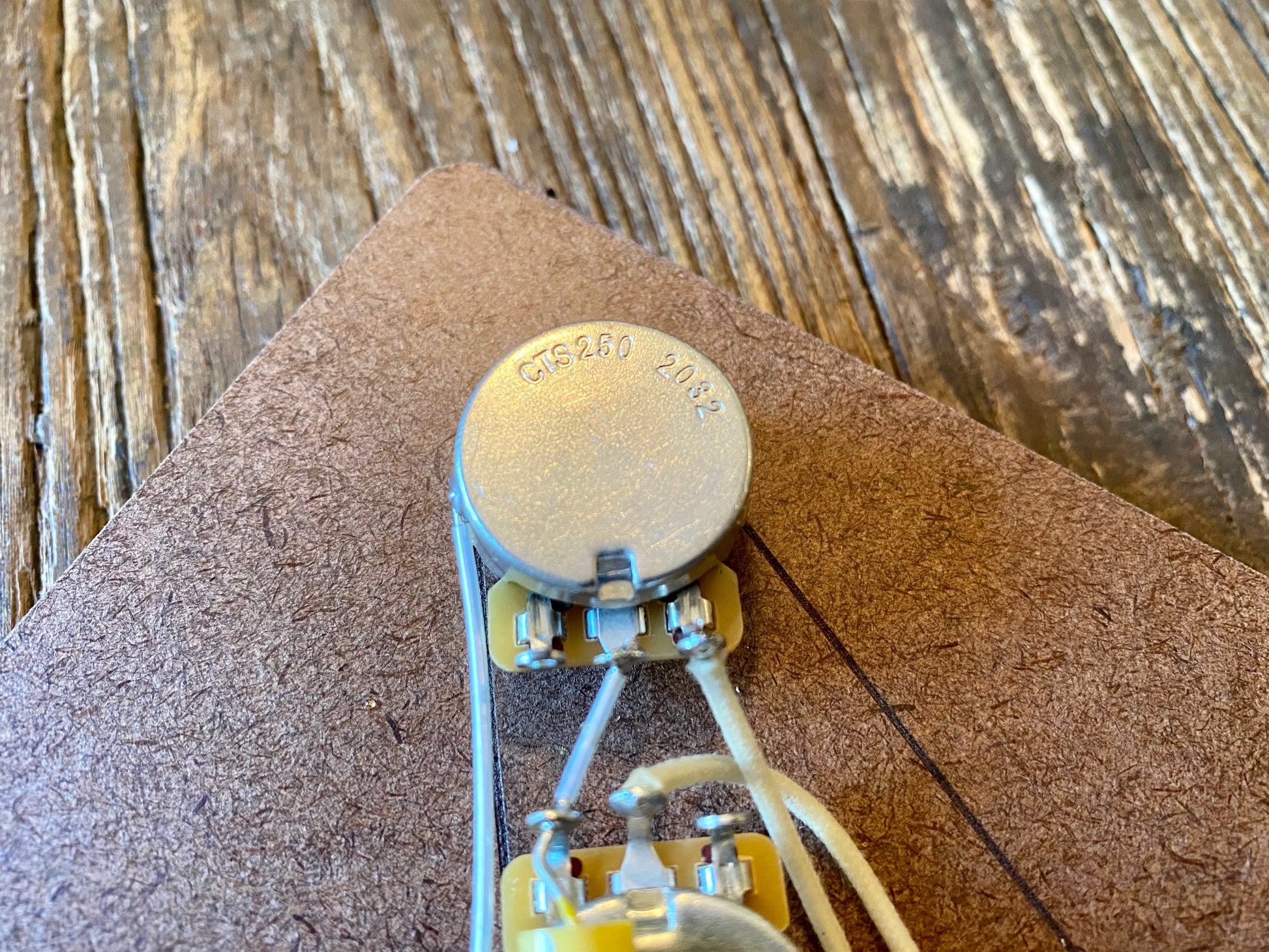

  • CTS / WD Music 250 kΩ Custom Audio Taper Pots | 24-Spline Split Shaft - these pots are spec'd to 275 kΩ w/ a 9% Tolerance to guarantee over 250 kΩ.
  • Oak-Grigsby - or - CRL 5-Way Blade Switch
  • Mallory 150 .022 µF, .047 µF, or .1 µF Polyester Film Tone Capacitor
  • Optional Treble Bleed - .001 µF Ceramic Disc / 150 kΩ Metal Film Resistor

Wiring configuration base on Traditional Stratocaster Specs with a Master Volume and Neck and Middle Tone Controls.  These are made to order there is some flexibility on what tone controls are functional for certain pickups/positions.  Feel free to message prior to ordering with any requests to verify availability.

Standard Positions as follows:

  1. Neck w/ Neck Tone Control
  2. Neck & Middle w/ Neck or Middle Tone Control
  3. Middle w/ Middle Tone Control
  4. Middle & Bridge w/ Middle Tone Control
  5. Bridge w/ NO Tone Control

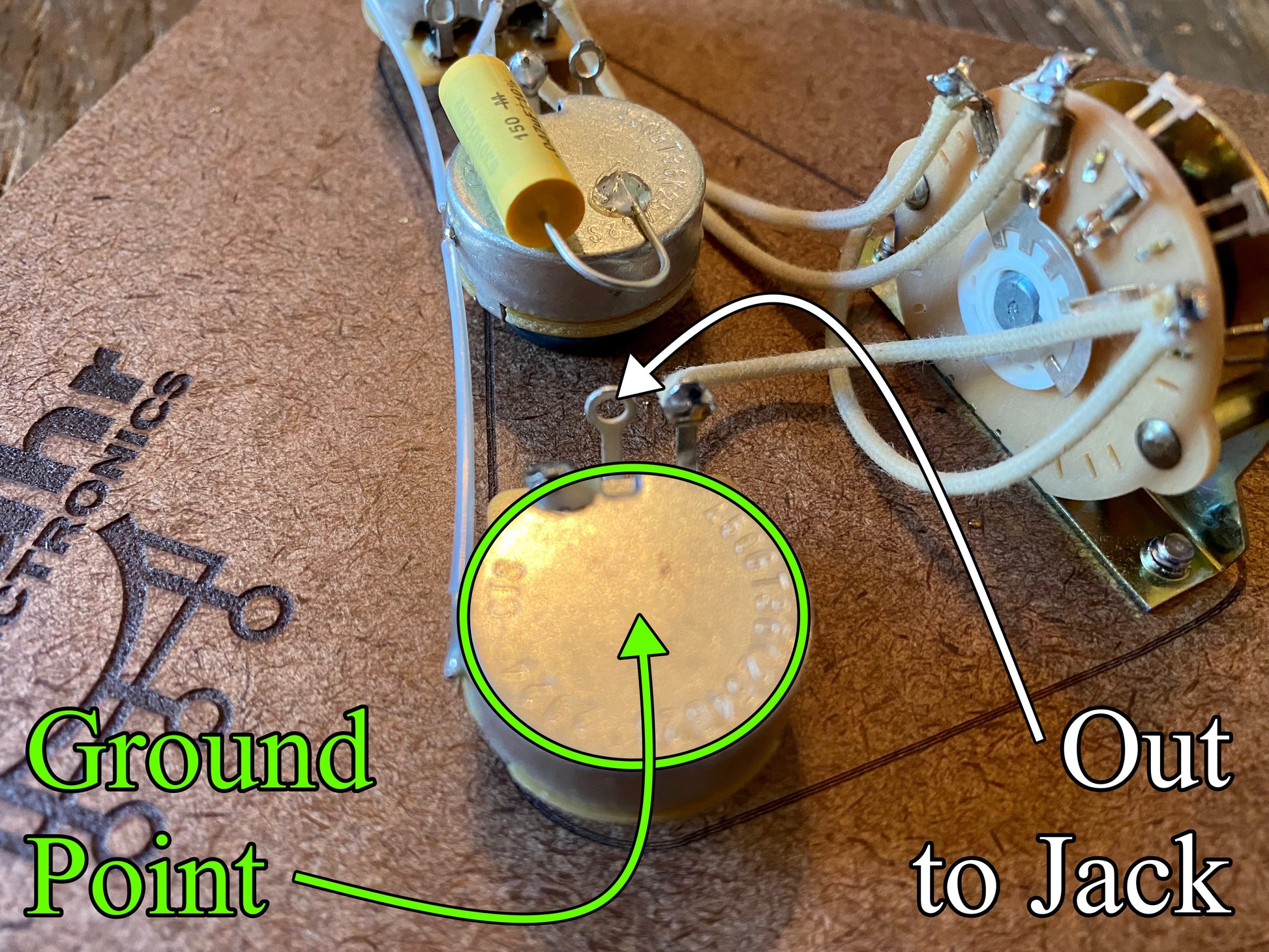

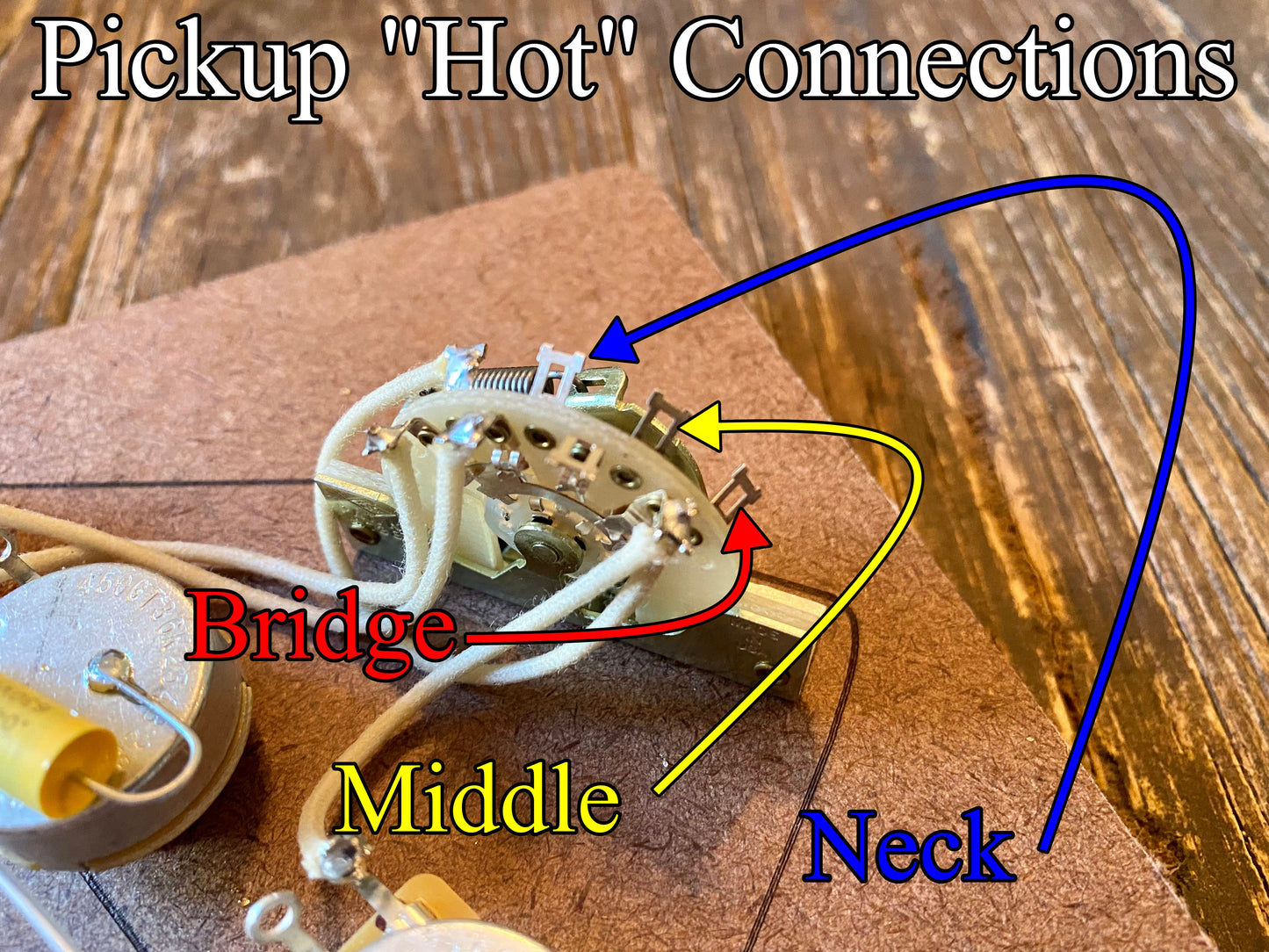

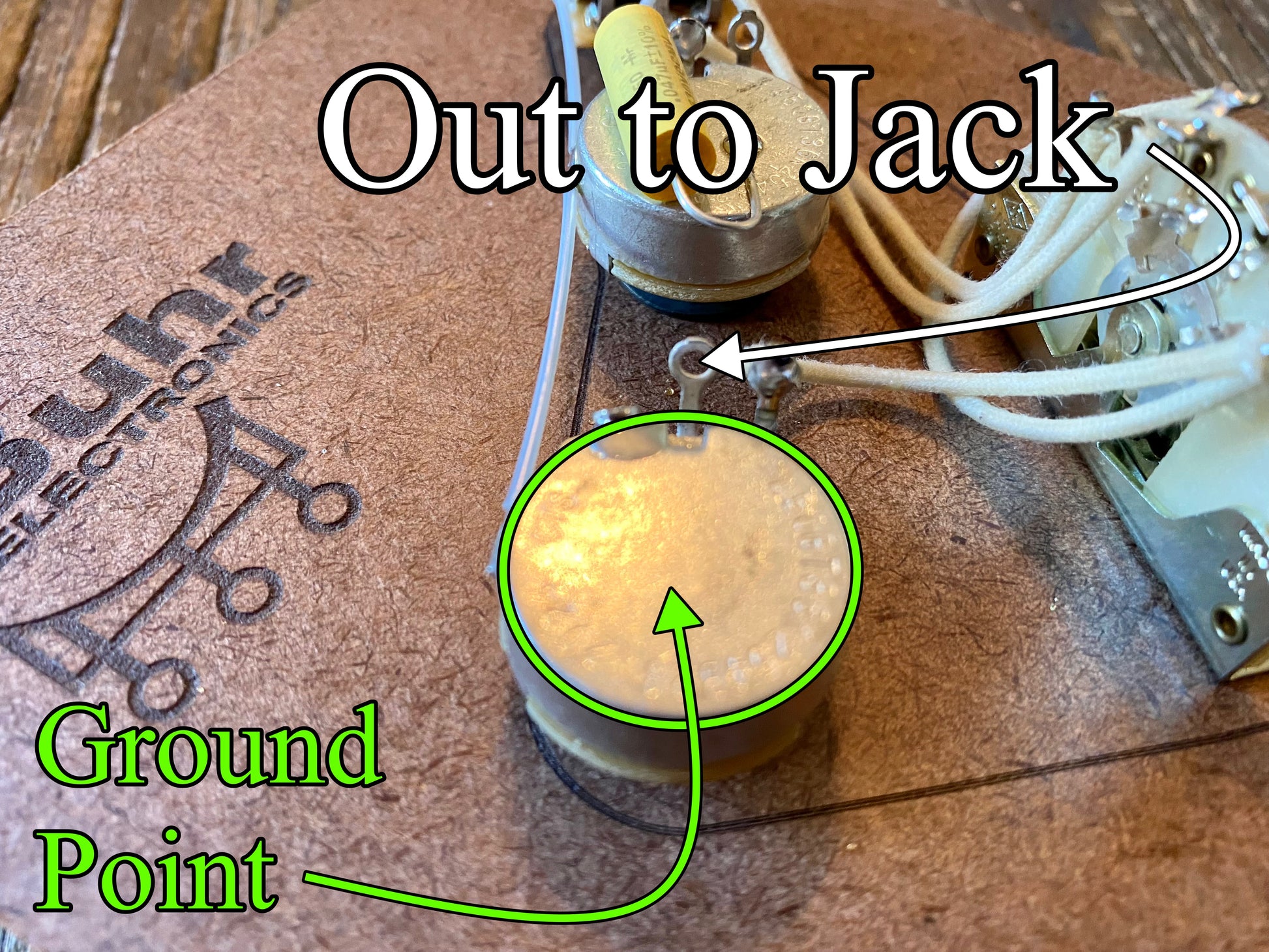

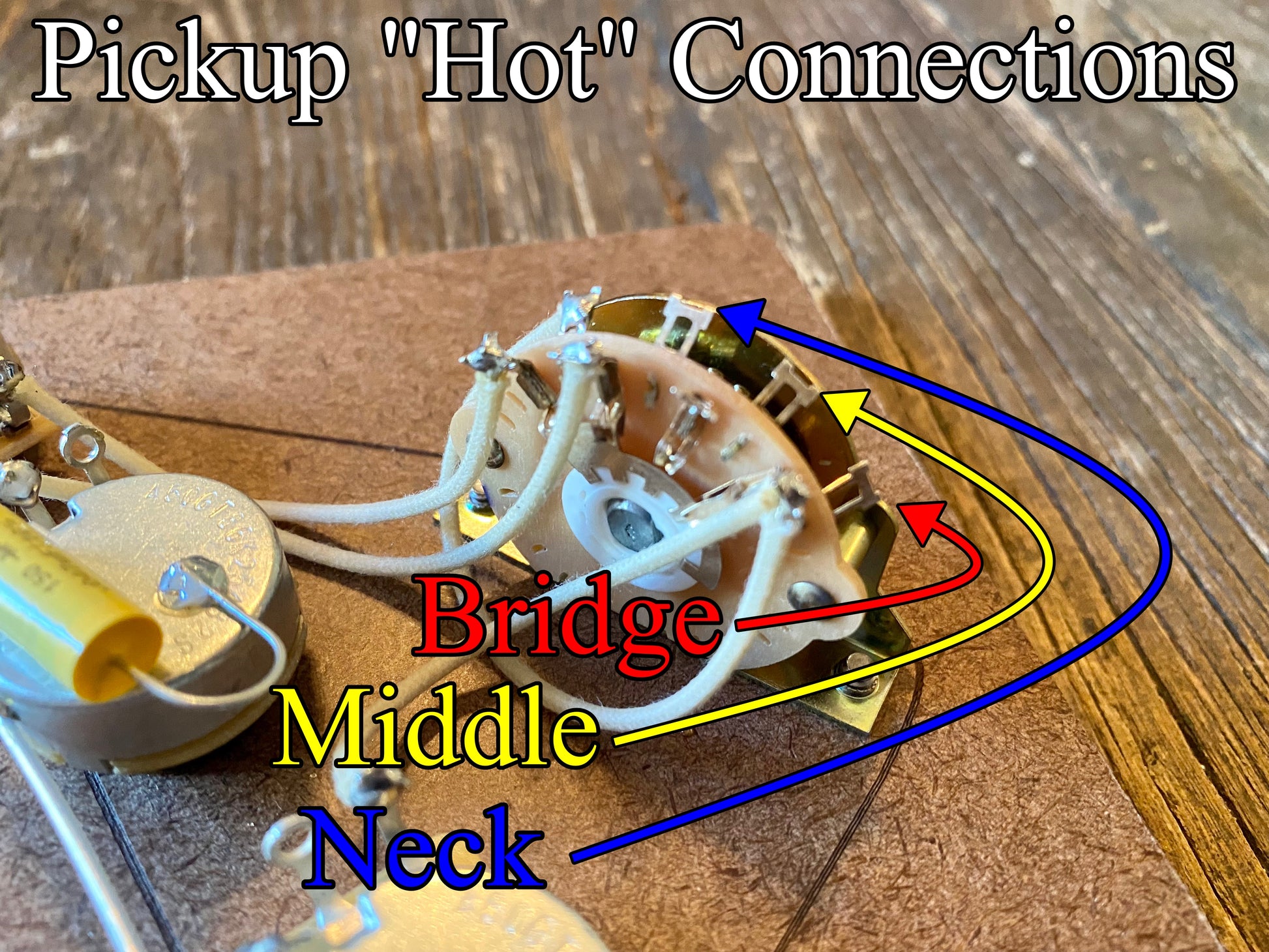

Please see diagram and pictures for connection points.  An output jack is not included but is available here if needed.
