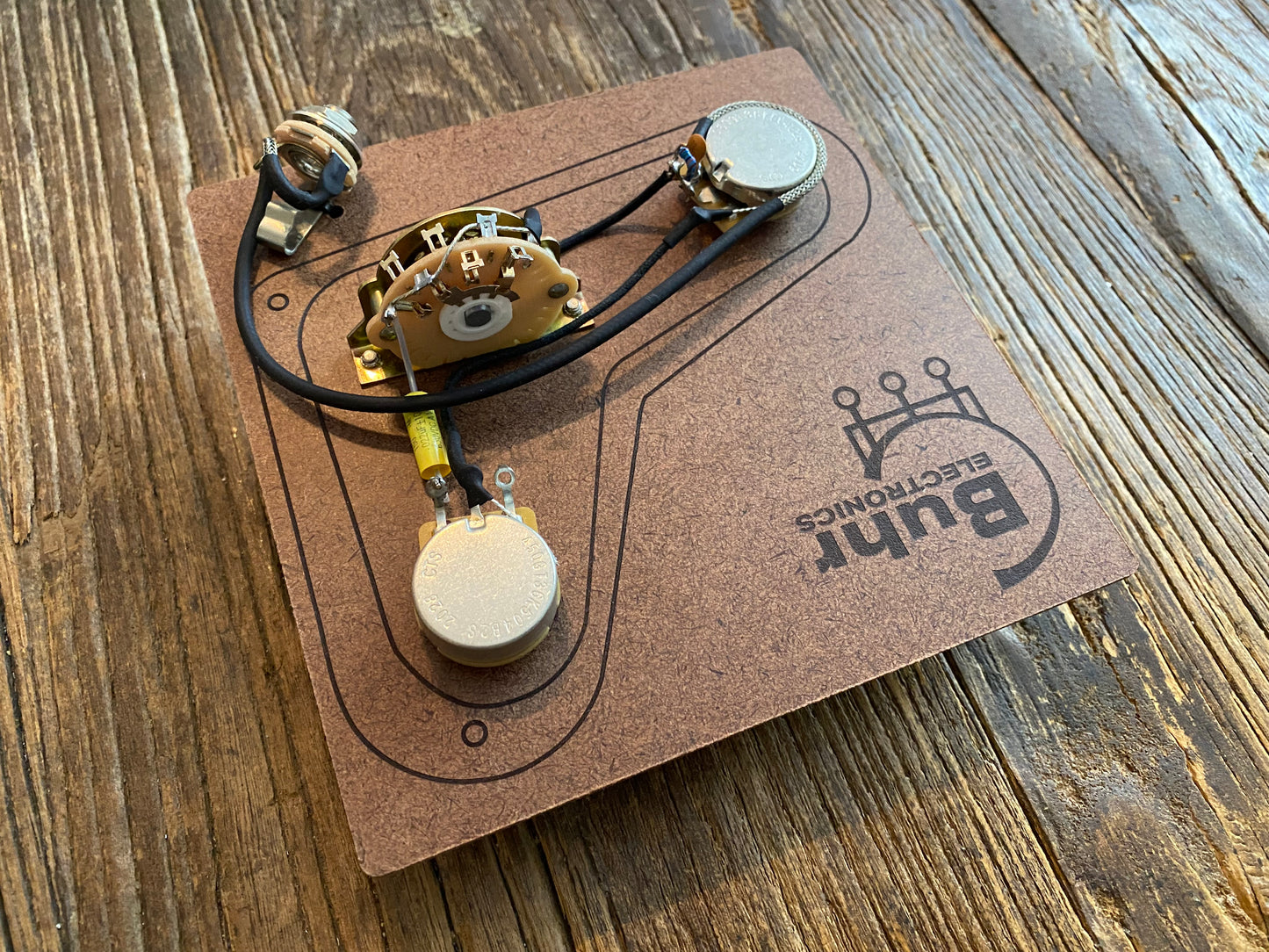

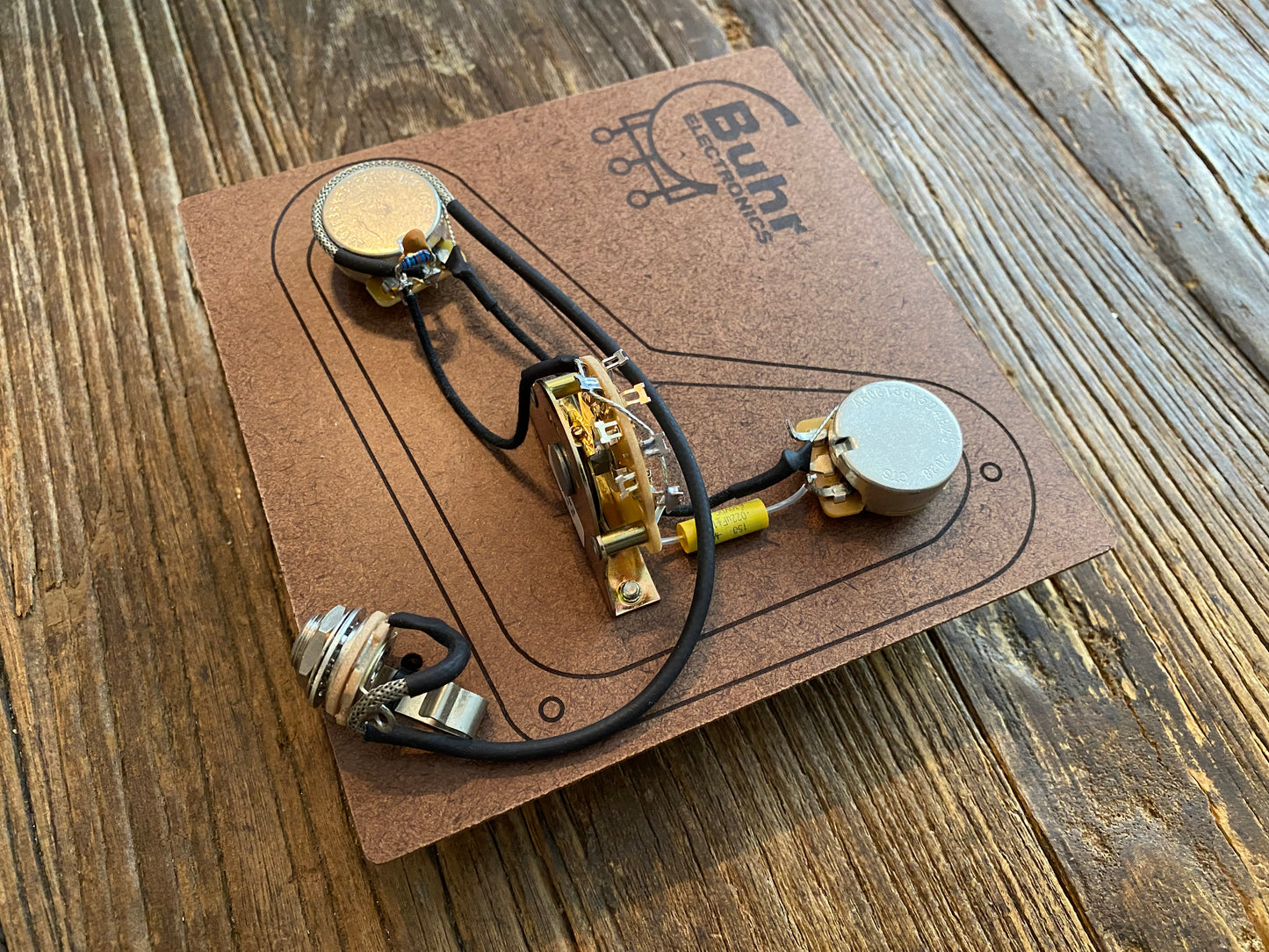

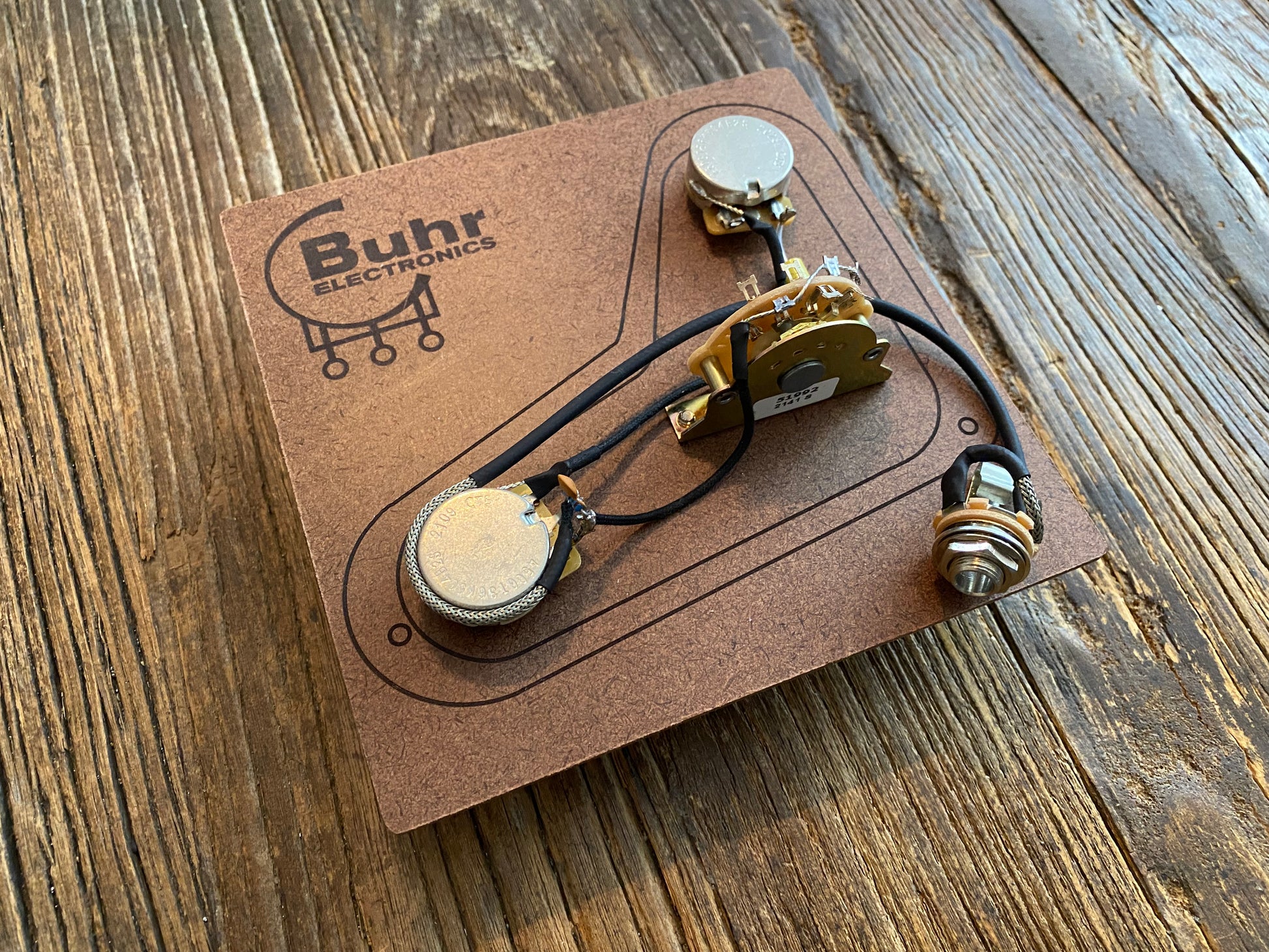

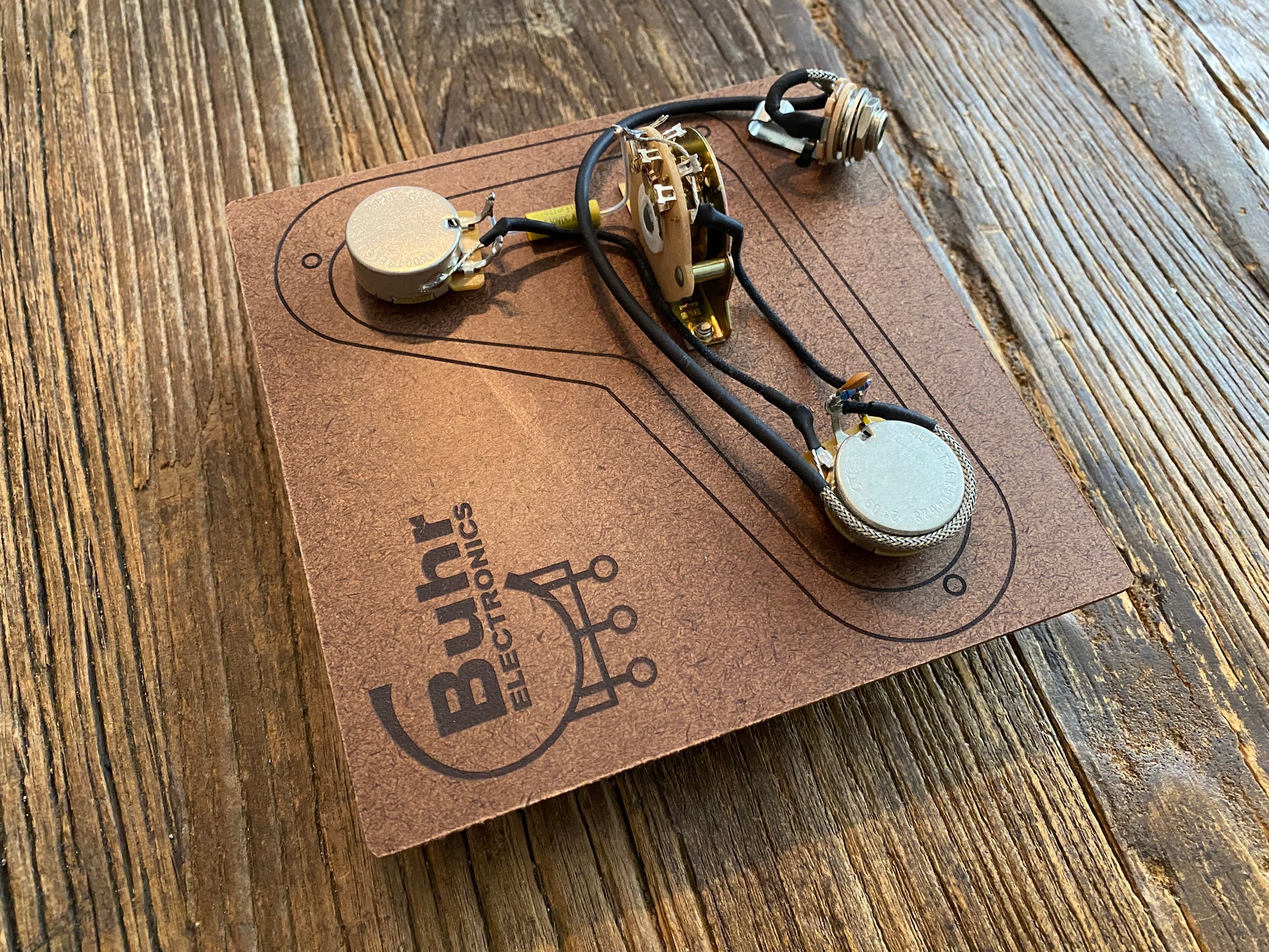

PRS Basic 3-Way Blade Wiring Kit | CTS 450G Potentiometers, Oak-Grigsby 3-Way, Mallory 150 Film Capacitors

Buhr Electronics

Regular price $47.90

This wiring kit does NOT have a push/pull for coil-splitting.

Modern Style Wiring with Top Quality Components

  • Matched CTS 450G Audio Taper 24-Spline Split Shaft Potentiometers | Choose Desired Tolerance Spec
  • Oak-Grigsby 3-Way Blade Switch | Also available with a CRL Switch Here
  • Optional Treble Bleed | Choose From Two Types
  • Mallory 150 Polyester Film Capacitor | Choose .01, .022 , .033, or .047 µF
  • Switchcraft #11 Mono Output Jack
  • Gavitt Vintage Style Braided Shield Wire
  • Gavitt Vintage Style Cloth Pushback Wire

Most Common / Recommended Values are Defaulted.

Switching Positions as Follows

  • Neck Only
  • Neck & Bridge In Parallel
  • Bridge Only

IMPORTANT - Most "Core" and some "S2" models will not allow the side mount jack to pass through the rear control cavity.  If this applies to your guitar, please let me know via the "Special Instructions for Seller" box from the "Cart" page when placing an order.  The jack can be left disconnected - or - a separate pre-wired jack can be included at no additional charge.

Wiring Diagram & Instructions
